3T Double Hook Monorail Air Hoist

3T Double Hook Monorail Air Hoist

Because pneumatic hoist has good explosion-proof performance, it is widely used in chemical industry, textile, paint, logistics, port and other workplaces with inflammable, explosive, high temperature, high dust and strong corrosive environments.According to different model, the hoist capacity ranges from 125kg to 30 tons. And special specification and marks can be made according to order quantity. The design of double hook make it can be used as parallel hoist, which is very suitable for the parcel processing and loading operation of big volume objects.

Product Details:

1. Model: 3T Double Hook Monorail Air hoist

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 3. 5kw

7. Rated Load speed: 3.5m/min

8. Air Consumption: 5.5m³/min

9. Trolley Capacity: 3T

10. Trolley Running Speed: 9.5m/min

11. Product Weight: 110kg

12. Packaging: Gunny bag or carton then on steel pallet

Advantages:

1. Suitable for complex environment and dangerous situation.

2. Strong power, solid structure, low noise.

3. Overload protection to ensure safety.

4. Stepless speed regulation is available when lifting or lowering.

5. High efficiency, easy to operate.

6. Precision positioning.

7. Suitable for the parcel processing and loading operation of big volume objects.

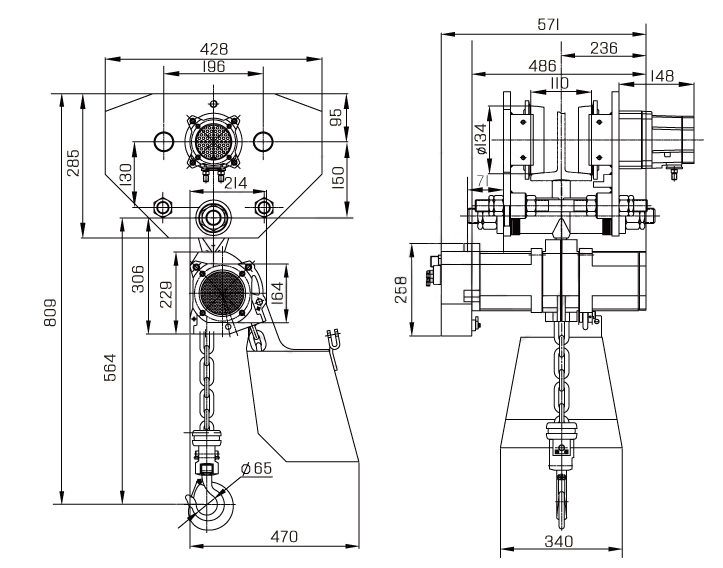

Sketch of 3T Double Hook Monorail Air Hoist
