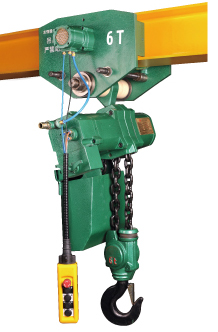

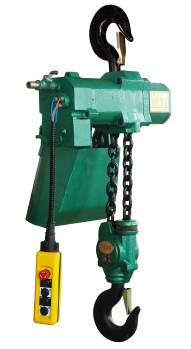

Pneumatic Hoist for Mine

Pneumatic Hoist for Mine

This kind of pneumatic hoist is widely used for mine. It has advantages of acid and alkali resistance, anti-corrosion, wear resistance and high dust resistance, which make it suitable for the mining environment. Beside that, stepless speed regulation is available when lifting or lowering. And It can avoid the problem of inaccurate positioning of ordinary lifting equipment. The brake can directly control the power transmission part to make it lock automatically to prevent the object fall.

Product Details:

1. Model: Pneumatic air chain hoist for mine

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 1kw/3.5kw

7. Rated Load speed: 1.2-4m/min

8. Air Consumption: 1.5-5.5m³/min

9. Product Weight:35-145kg

10. Packaging: Gunny bag or carton then on steel pallet

11. Special specification and marks can be made according to order quantity

1. Suitable for complex environment and dangerous situation.

2. Stepless speed regulation is available when lifting or lowering.

3. Easy maintenance, long service life.

4. High efficiency, easy to operate.

5. Overload protection to ensure safety.

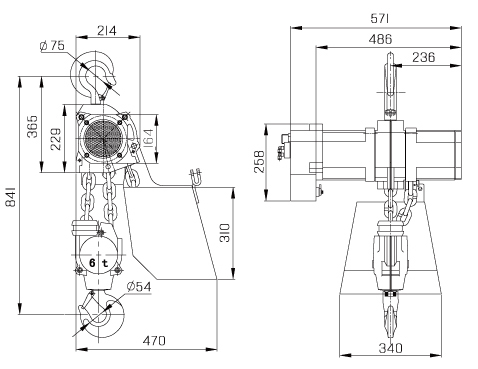

Specification:
