Explosion-proof Pneumatic Hoist

Explosion-proof Pneumatic Hoist

Because pneumatic hoist has good explosion-proof performance, it is widely used in chemical industry, textile, paint, logistics, port and other workplaces with inflammable, explosive, high temperature, high dust and strong corrosive environments. According to different model, the hoist capacity ranges from 125kg to 30 tons. Cooperating with various non-standard clamps, pneumatic hoist can lift workpieces with all kinds of shapes. And special specification and marks can be made according to order quantity

Product Details:

1. Model: Explosion-proof pneumatic hoist

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 0.75-3.5kw

7. Rated Load speed: 0.6-20m/min

8. Air Consumption: 1-5.5m³/min

9. Packaging: Gunny bag or carton then on steel pallet

Advantages:

1. Suitable for complex environment and dangerous situation.

2. Stepless speed regulation is available when lifting or lowering.

3. Easy maintenance, long service life.

4. High efficiency, easy to operate.

5. Overload protection to ensure safety.

Specification:

Model	Capacity	Lifting Height	No.of chain	Working Pressure	Motor Output Power	Air Consumption	Lifting Speed	Product Weight
Model	t	m	No.of chain	Mpa	kw	m³/min	m/min	kg
HS-125	0.125	3	1	0.6	0.75	1	20	23
HS-250	0.25	3	1	0.6	0.75	1	15	23
HS-500	0.5	3	1	0.6	0.75	1.3	10	23
HS-980	0.98	3	2	0.6	0.75	1.3	5	29.5
HS-1T	1	3	1	0.6	1	1.5	4	35
HS-2T	2	3	2	0.6	1	1.5	2	41
HS-3T	3	3	1	0.6	3.5	5.5	3.5	110
HS-5T	5	3	2	0.6	3.5	5.5	2	122
HS-6T	6	3	2	0.6	3.5	5.5	1.8	122
HS-10T	10	3	4	0.6	3.5	5.5	1.2	145
HS-16T	16	3	3	0.6	3.5	5.5	0.8	-
HS-20T	20	3	4	0.6	3.5	5.5	0.6	-

Explosion-proof Pneumatic Hoist

Sketch of 2T Explosion-proof Pneumatic Hoist

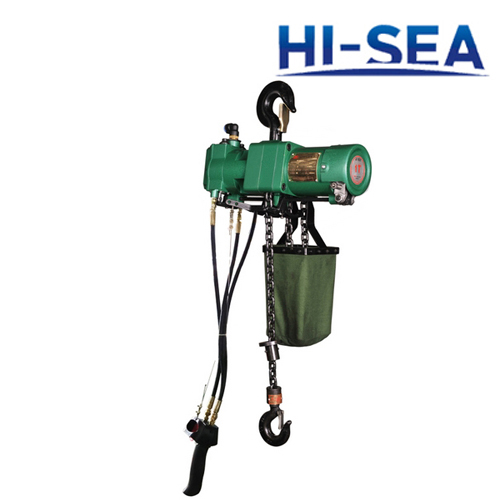

1T Explosion-proof Pneumatic Hoist
