Heavy Duty Pneumatic Chain Hoist

Heavy Duty Pneumatic Chain Hoist

Pneumatic hoist is currently the most ideal explosion-proof lifting equipmet in the world. And it is the essential equipment for safe production, improving efficiency and reducing cost of factory. It can avoid the problem of inaccurate positioning of ordinary lifting equipment. And the speed of it is 3 times of electric hoists and 5 to 10 times of manual chain hoist. The brake can directly control the power transmission part to make it lock automatically to prevent the object fall.

Product Details:

1. Model: 10, 16T, 20T pneumatic air chain hoist

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 3.5kw

7. Rated Load speed: 0.8-1.2m/min

8. Air Consumption: 5.5m³/min

9. Packaging: Gunny bag or carton then on steel pallet

10. Special specification and marks can be made according to order quantity

Advantages:

1. Suitable for complex environment and dangerous situation.

2. Stepless speed regulation is available when lifting or lowering.

3. Easy maintenance, long service life.

4. High efficiency, easy to operate.

5. Overload protection to ensure safety.

Specification：

Model	Capacity	Lifting Height	No.of chain	Lifting speed	Air Consumption	Weight
	t	m		m/min	m³/min	kg
HS-10T	10	3	4	1.2	5.5	145
HS-16T	16	3	3	0.8	5.5	-
HS-20T	20	3	4	0.6	5.5	-

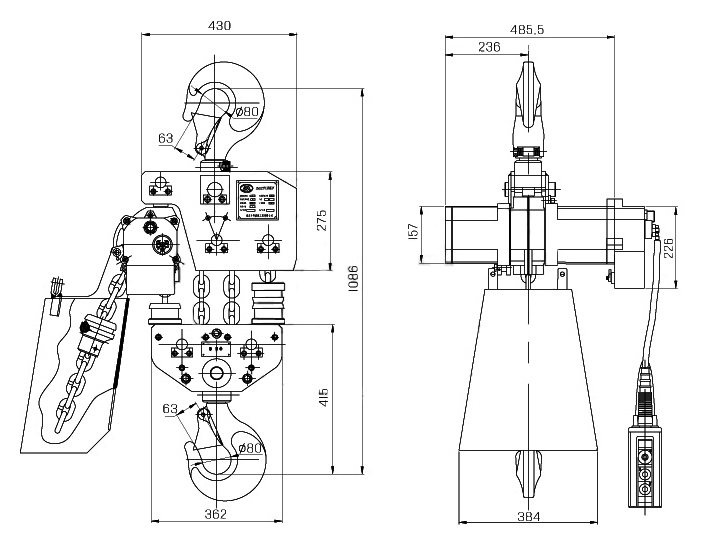

Sketch of heavy duty pneumatic chain hoist
