8-22mm Stud Welding Machine
1) Application
It is used for welding stud, shear connector, pin, bolt and other fasteners. The welding diameter is 8 - 22mm.
2) Feature
1.Current: 200-3150A
2.Frequency: 50 - 60Hz
3.High working efficiency and reliable
4.With auxiliary striking arc voltage, high success rate of striking arc
5.Strong anti-fluctuation of electric grid/voltage
6.Short circuit protection, over temperature protection, over current protection, over voltage protection and open phase protection
7.Stable welding arc
8.Low noise
9.Small size, light weight, easy moving
3) Specification
Model | Input Power | Max. Current | Current Adjusting Range | Duty Cycle | Suitable Stud |
RSN7-2000A | 380V,3P | 2000A | 200-2000A | 60% | 8-22mm |

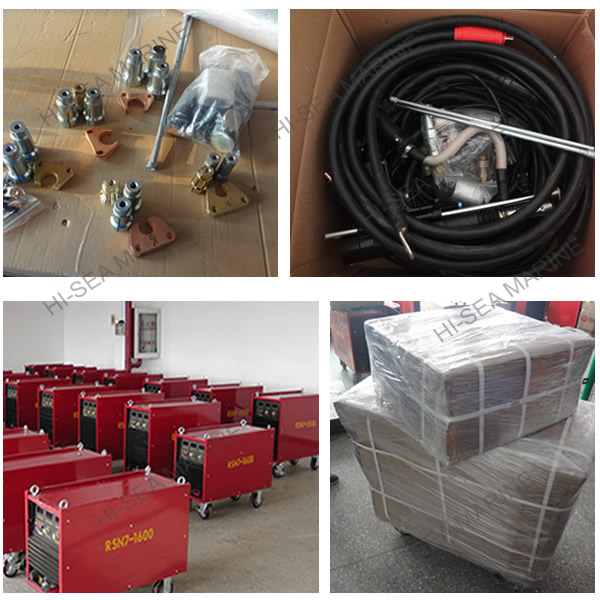

4) 8 -22mm Stud Welding Machine in Warehouse:

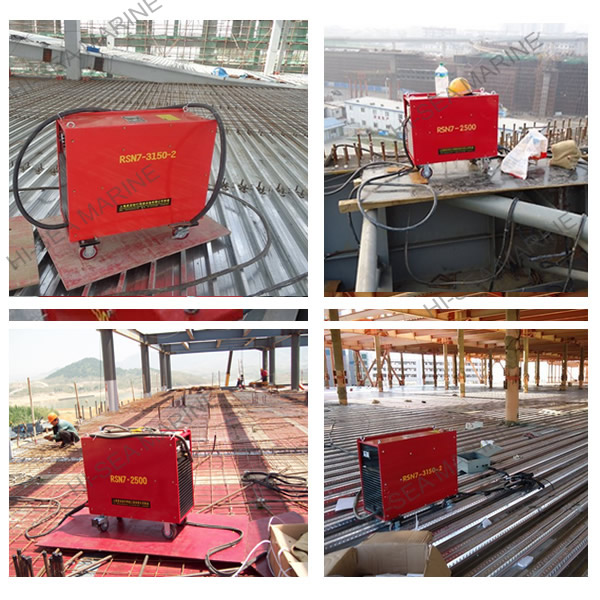

5) 8 -22mm Stud Welding Machine Working:
