Drawn Arc Stud Welding Machine
[Search Related Products]
Drawn Arc Stud Welding Machine
1) Application
It is used for welding stud, shear connector, pin, bolt and other fasteners. The welding diameter is 3 - 28mm.
2) Feature
1.Current: 200-5000A
2.Frequency: 50 - 60Hz
3.High working efficiency and reliable
4.With auxiliary striking arc voltage, high success rate of striking arc
5.Strong anti-fluctuation of electric grid/voltage
6.Short circuit protection, over temperature protection, over current protection, over voltage protection and open phase protection
7.Stable welding arc
8.Low noise
9.Small size, light weight, easy moving
3) Specification of Drawn Arc Stud Welding Machine
Item |
RSN7-2500-2 |
RSN7-3150-2 |
RSN7-4000-2 |
RSN7-5000-2 | ||||
operation situation | one gun | dual guns | one gun | dual guns | one gun | dual guns | one gun | dual guns |
welding range | ¦µ6-¦µ28 | ¦µ4-¦µ18 | ¦µ6-¦µ36 | ¦µ4-¦µ20 | ¦µ6-¦µ46 | ¦µ4-¦µ24 | ¦µ8¨C¦µ50 | ¦µ6¨C¦µ28 |
welding current | 400A-2500A | 300A-1250A | 400A-3150A | 300A-1550A | 600A-4000A | 400A-2000A | 600A-5000A | 400A-2500A |
welding speed |
¦µ28 8pcs/minute |
¦µ18 8pcs/minute |
¦µ36 8pcs/minute |
¦µ20 8pcs/minute |
¦µ46 8pcs/minute |
¦µ24 8pcs/minute |
¦µ50 6pcs/minute
|
¦µ28 6pcs/minute |
welding time | 0.1S-3S | 0.1S-3S | 0.1S-3S | 0.1S-3S | ||||
input power | AC 3˜300V-440V | AC 3˜300V-440V | AC 3˜300-440 | AC 3˜300-440 | ||||
rated input power | 90KW | 120KW | 150KW | 190KW | ||||
power switch | 160A | 225A | 250A | 250A | ||||
protect grade | Ip23 | Ip23 | Ip23 | Ip23 | ||||
cooling way | F | F | F | F | ||||
dimension(L/W/H) |
960x418x760mm |
990x418x800mm |
990x418x800mm |
990x418x800mm | ||||
weight | 168KG |
180KG |
188KG | 198KG |
Item | RSN7-1600 | RSN7-2000 | RSN7-2500 | RSN7-3150 |
welding range | ¦µ4mm¡ª¦µ20mm | ¦µ4mm¡ª¦µ24mm | ¦µ4mm¡ª¦µ28mm | ¦µ4mm-¦µ36mm |
welding current | 200A¡ª1600A | 200A¡ª2000A | 200A¡ª2500A | 300A¡ª3150A |
welding time | 0.1S¡ª3S | 0.1S¡ª3S | 0.1S¡ª3S | 0.1S¡ª3S |
welding speed | ¦µ20 10pcs/minute |
¦µ24 10pcs/minute |
¦µ28 10pcs/minute |
¦µ36 8pcs/minute |
input power | AC 3˜280V¡ª440V | AC 3˜280V¡ª440V | AC 3˜280V¡ª440V | AC 3˜280V¡ª440V |
rated input power | 50KW | 60KW | 80KW | 100KW |
power switch | 100A | 125A | 160A | 225A |
protect grade | Ip23 | Ip23 | Ip23 | IP23 |
cooling way | F | F | F | F |
dimension(L/W/H) | 890x368x560mm | 890x398x680mm | 890x398x680mm | 890x398x800mm |
weight | 98KG | 126KG |
135KG |
168 |

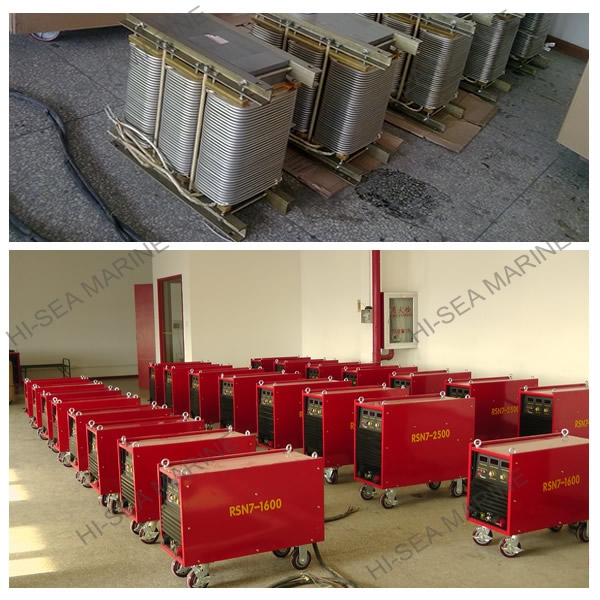

Drawn Arc Stud Welding Machine Producing:

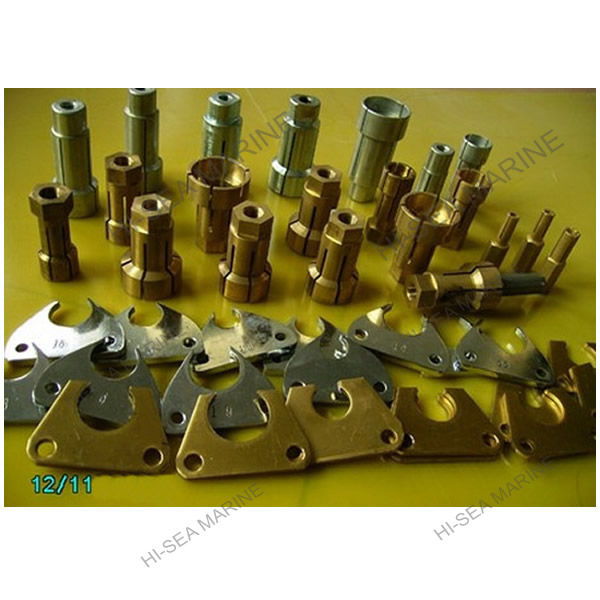

Drawn Arc Stud Welding Machine Spare Parts:
