1) Application

It is used for welding stud, shear connector, pin, bolt and other fasteners. The welding diameter is 3 - 28mm.

2) Feature

1.Current: 200-3150A
2.Frequency: 50 - 60Hz

3.High working efficiency and reliable

4.With auxiliary striking arc voltage, high success rate of striking arc

5.Strong anti-fluctuation of electric grid/voltage

6.Short circuit protection, over temperature protection, over current protection, over voltage protection and open phase protection

7.Stable welding arc

8.Low noise

9.Small size, light weight, easy moving

3) Specification of Inverter Stud Welding Machine Chart 1

Item RSN7-800 RSN7-1000 RSN7-1200
welding range ¦µ4mm¡ª¦µ12mm ¦µ4mm¡ª¦µ14mm ¦µ4mm¡ª¦µ16mm
welding current 160A¡ª800A 200A¡ª1000A 200A¡ª1200A
welding time 0.1S¡ª3S 0.1S¡ª3S 0.1S¡ª3S
welding speed ¦µ12 10pcs / minute ¦µ14 10pcs / minute ¦µ16 10pcs / minute
input power AC 3˜280V¡ª440V AC 3˜280V¡ª400V AC 3˜280V¡ª440V
rated input power 30KW 35KW 40KW
power switch 47A 63A 63A
protect grade Ip23 Ip23 Ip23
cooling way F F F
dimension(L/W/H) 880x368x560mm 880x368x560mm 880x368x560mm
weight 68KG 80KG

90KG

4) Specification of Inverter Stud Welding Machine Chart 2

Item RSN7-1600 RSN7-2000 RSN7-2500 RSN7-3150
welding range ¦µ4mm¡ª¦µ20mm ¦µ4mm¡ª¦µ24mm ¦µ4mm¡ª¦µ28mm ¦µ4mm-¦µ36mm
welding current 200A¡ª1600A 200A¡ª2000A 200A¡ª2500A 300A¡ª3150A
welding time 0.1S¡ª3S 0.1S¡ª3S 0.1S¡ª3S 0.1S¡ª3S
welding speed ¦µ20 10pcs/minute

¦µ24 10pcs/minute

¦µ28 10pcs/minute

¦µ36 8pcs/minute

input power AC 3˜280V¡ª440V AC 3˜280V¡ª440V AC 3˜280V¡ª440V AC 3˜280V¡ª440V
rated input power 50KW 60KW 80KW 100KW
power switch 100A 125A 160A 225A
protect grade Ip23 Ip23 Ip23 IP23
cooling way F F F F
dimension(L/W/H) 890x368x560mm 890x398x680mm 890x398x680mm 890x398x800mm
weight 98KG 126KG

135KG

168

5) Specification of Inverter Stud Welding Machine Chart 3

Item RSN7-2500-2
RSN7-3150-2
RSN7-4000-2
RSN7-5000-2
operation situation one gun dual guns one gun dual guns one gun dual guns one gun dual guns
welding range ¦µ6-¦µ28 ¦µ4-¦µ18 ¦µ6-¦µ36 ¦µ4-¦µ20 ¦µ6-¦µ46 ¦µ4-¦µ24 ¦µ8¨C¦µ50 ¦µ6¨C¦µ28
welding current 400A-2500A 300A-1250A 400A-3150A 300A-1550A 600A-4000A 400A-2000A 600A-5000A 400A-2500A
welding speed

¦µ28

8pcs/minute

¦µ18 8pcs/minute

¦µ36

8pcs/minute

¦µ20 8pcs/minute

¦µ46 8pcs/minute

¦µ24

8pcs/minute


¦µ50

6pcs/minute


¦µ28

6pcs/minute

welding time 0.1S-3S 0.1S-3S 0.1S-3S 0.1S-3S
input power AC 3˜300V-440V AC 3˜300V-440V AC 3˜300-440 AC 3˜300-440
rated input power 90KW 120KW 150KW 190KW
power switch 160A 225A 250A 250A
protect grade Ip23 Ip23 Ip23 Ip23
cooling way F F F F
dimension(L/W/H) 960x418x760mm
990x418x800mm
990x418x800mm
990x418x800mm
weight 168KG

180KG

188KG 198KG

6) Inverter Stud Welding Machine Pictures:

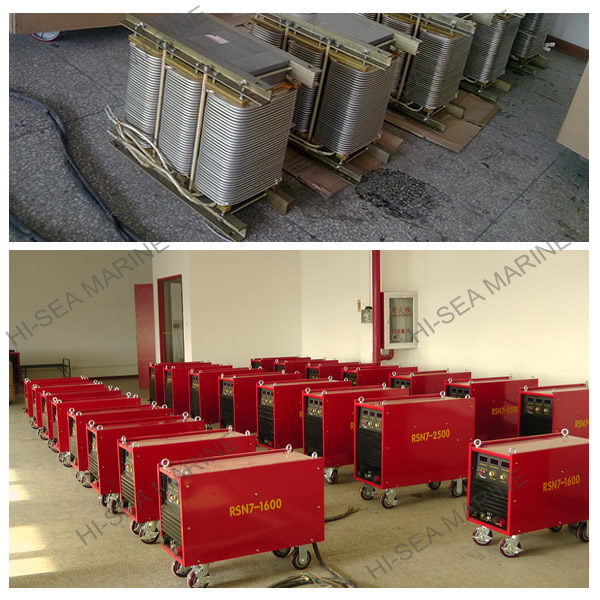

Inverter Stud Welding Machine Producing:

Inverter Stud Welding Machine

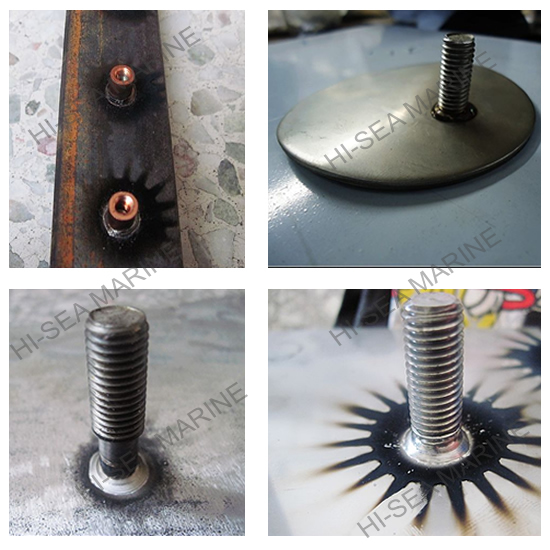

Inverter Stud Welding Machine Stud:

Inverter Stud Welding Machine
