Stud Welding Machine

Stud Welding Machine

1) Application

it is used for welding stud, bolt, shear connector and other fasteners.

2) Feature

1.Current: 200- 5000A
2.Frequency: 50 - 60Hz

3.High working efficiency and reliable

4.With auxiliary striking arc voltage, high success rate of striking arc

5.Strong anti-fluctuation of electric grid/voltage

6.Short circuit protection, over temperature protection, over current protection, over voltage protection and open phase protection

7.Stable welding arc

8.Low noise

9.Small size, light weight, easy moving

3) Specification

Item	RSN7-2500-2		RSN7-3150-2		RSN7-4000-2		RSN7-5000-2
operation situation	one gun	dual guns	one gun	dual guns	one gun	dual guns	one gun	dual guns
welding range	Φ6-Φ28	Φ4-Φ18	Φ6-Φ36	Φ4-Φ20	Φ6-Φ46	Φ4-Φ24	Φ8–Φ50	Φ6–Φ28
welding current	400A-2500A	300A-1250A	400A-3150A	300A-1550A	600A-4000A	400A-2000A	600A-5000A	400A-2500A
welding speed	Φ28 8pcs/minute	Φ18 8pcs/minute	Φ36 8pcs/minute	Φ20 8pcs/minute	Φ46 8pcs/minute	Φ24 8pcs/minute	Φ50 6pcs/minute	Φ28 6pcs/minute
welding time	0.1S-3S		0.1S-3S		0.1S-3S		0.1S-3S
input power	AC 3˜300V-440V		AC 3˜300V-440V		AC 3˜300-440		AC 3˜300-440
rated input power	90KW		120KW		150KW		190KW
power switch	160A		225A		250A		250A
protect grade	Ip23		Ip23		Ip23		Ip23
cooling way	F		F		F		F
dimension(L/W/H)	960x418x760mm		990x418x800mm		990x418x800mm		990x418x800mm
weight	168KG		180KG		188KG		198KG

Item	RSN7-1600	RSN7-2000	RSN7-2500	RSN7-3150
welding range	Φ4mm—Φ20mm	Φ4mm—Φ24mm	Φ4mm—Φ28mm	Φ4mm-Φ36mm
welding current	200A—1600A	200A—2000A	200A—2500A	300A—3150A
welding time	0.1S—3S	0.1S—3S	0.1S—3S	0.1S—3S
welding speed	Φ20 10pcs/minute	Φ24 10pcs/minute	Φ28 10pcs/minute	Φ36 8pcs/minute
input power	AC 3˜280V—440V	AC 3˜280V—440V	AC 3˜280V—440V	AC 3˜280V—440V
rated input power	50KW	60KW	80KW	100KW
power switch	100A	125A	160A	225A
protect grade	Ip23	Ip23	Ip23	IP23
cooling way	F	F	F	F
dimension(L/W/H)	890x368x560mm	890x398x680mm	890x398x680mm	890x398x800mm
weight	98KG	126KG	135KG	168

Item	RSN7-800	RSN7-1000	RSN7-1200
welding range	Φ4mm—Φ12mm	Φ4mm—Φ14mm	Φ4mm—Φ16mm
welding current	160A—800A	200A—1000A	200A—1200A
welding time	0.1S—3S	0.1S—3S	0.1S—3S
welding speed	Φ12 10pcs / minute	Φ14 10pcs / minute	Φ16 10pcs / minute
input power	AC 3˜280V—440V	AC 3˜280V—400V	AC 3˜280V—440V
rated input power	30KW	35KW	40KW
power switch	47A	63A	63A
protect grade	Ip23	Ip23	Ip23
cooling way	F	F	F
dimension(L/W/H)	880x368x560mm	880x368x560mm	880x368x560mm
weight	68KG	80KG	90KG

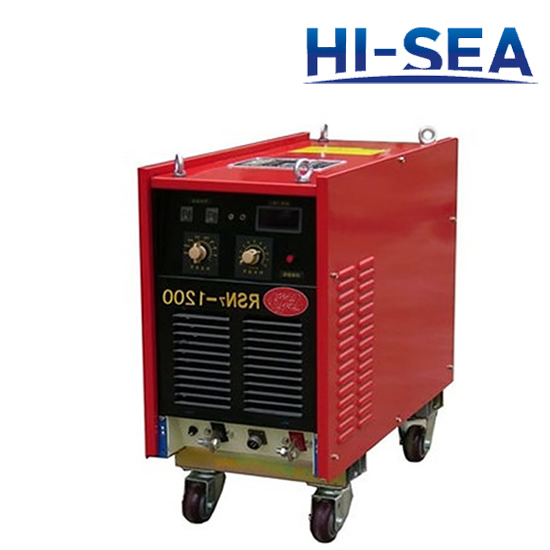

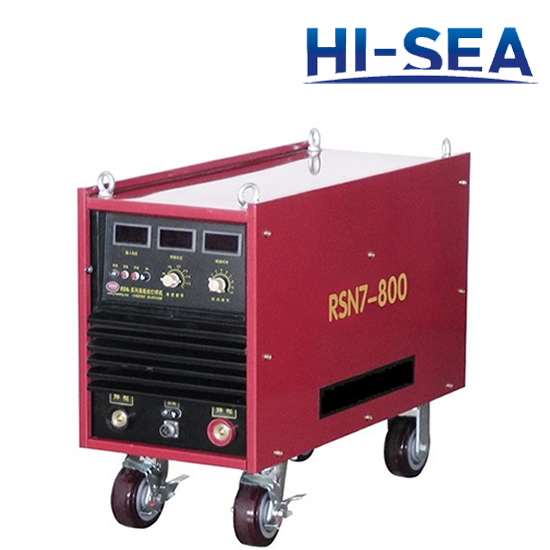

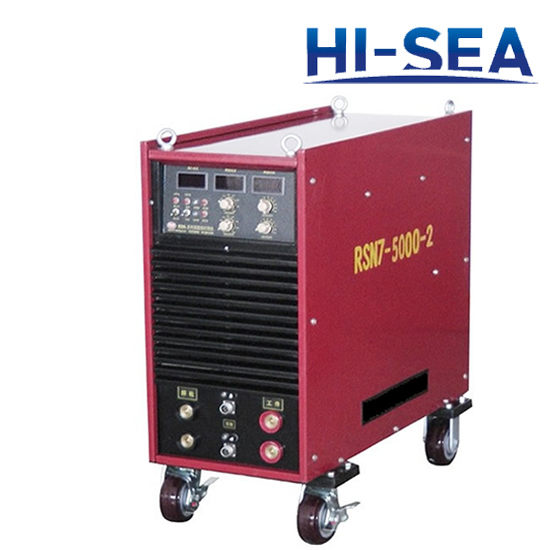

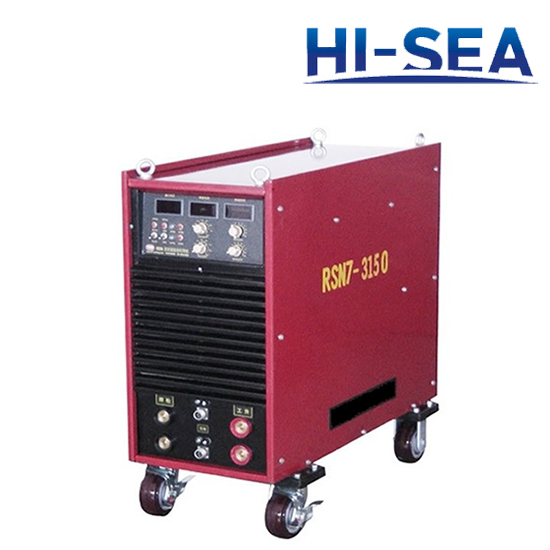

Stud Welding Machine Pictures:

Stud Welding Machine

Stud Welding Machine

Stud Welding Machine

Stud Welding Machine
