Stud Welding Machine Price List
[Search Related Products]
1. Brief Introduction:
Stud welding machine are widely welding M4 - M 28 studs for steel construction and sheet metal field.
The voltage is 280-440V. Our machine advantages are long working life, less weight, power efficient, environmental protection, safe and reliable.
-
2. Application:
-
Shipbuilding, Building, Bridge,Tunnel, Road etc.
3. Stud Welding Machine Price List:
We will give you right stud welding machine and competitive price according to your demand.
4. Stud Welding Machine Specification (Single Gun Type):
Item | RSN7-1600 | RSN7-2000 | RSN7-2500 | RSN7-3150 |
welding range | ¦µ4mm¡ª¦µ20mm | ¦µ4mm¡ª¦µ24mm | ¦µ4mm¡ª¦µ28mm | ¦µ4mm-¦µ36mm |
welding current | 200A¡ª1600A | 200A¡ª2000A | 200A¡ª2500A | 300A¡ª3150A |
welding time | 0.1S¡ª3S | 0.1S¡ª3S | 0.1S¡ª3S | 0.1S¡ª3S |
welding speed | ¦µ20 10pcs/minute |
¦µ24 10pcs/minute |
¦µ28 10pcs/minute |
¦µ36 8pcs/minute |
input power | AC 3˜280V¡ª440V | AC 3˜280V¡ª440V | AC 3˜280V¡ª440V | AC 3˜280V¡ª440V |
rated input power | 50KW | 60KW | 80KW | 100KW |
power switch | 100A | 125A | 160A | 225A |
protect grade | Ip23 | Ip23 | Ip23 | IP23 |
cooling way | F | F | F | F |
dimension(L/W/H) | 890x368x560mm | 890x398x680mm | 890x398x680mm | 890x398x800mm |
weight | 98KG | 126KG |
135KG |
168 |
5. Stud Welding Machine Specification (Dual Guns Type):
Item |
RSN7-2500-2 |
RSN7-3150-2 |
RSN7-4000-2 | |||
operation situation | one gun | dual guns | one gun | dual guns | one gun | dual guns |
welding range | ¦µ6-¦µ28 | ¦µ4-¦µ18 | ¦µ6-¦µ36 | ¦µ4-¦µ20 | ¦µ6-¦µ46 | ¦µ4-¦µ24 |
welding current | 400A-2500A | 300A-1250A | 400A-3150A | 300A-1550A | 600A-4000A | 400A-2000A |
welding speed |
¦µ28 8pcs/minute |
¦µ18 8pcs/minute |
¦µ36 8pcs/minute |
¦µ20 8pcs/minute |
¦µ46 8pcs/minute |
¦µ24 8pcs/minute |
welding time | 0.1S-3S | 0.1S-3S | 0.1S-3S | |||
input power | AC 3˜300V-440V | AC 3˜300V-440V | AC 3˜300-440 | |||
rated input power | 90KW | 120KW | 150KW | |||
power switch | 160A | 225A | 250A | |||
protect grade | Ip23 | Ip23 | Ip23 | |||
cooling way | F | F | F | |||
dimension(L/W/H) |
960x418x760mm |
990x418x800mm |
990x418x800mm | |||
weight | 168KG |
180KG |
188KG |

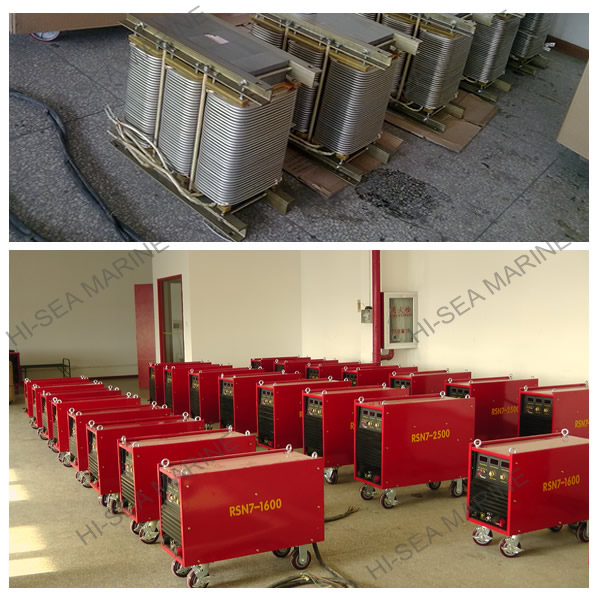

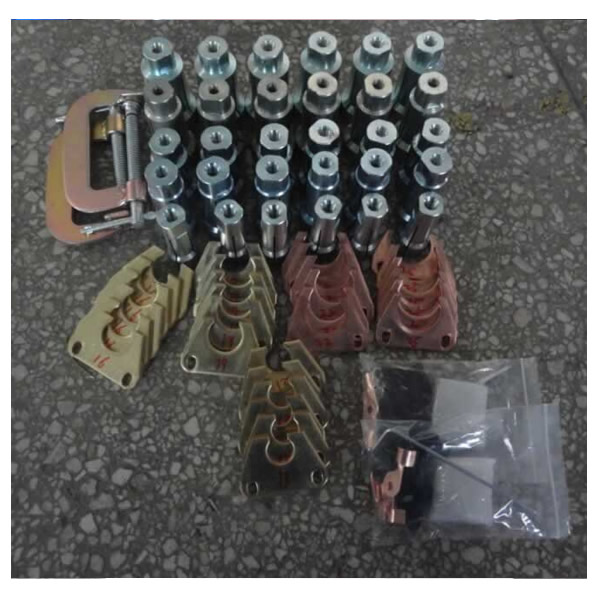

6. Stud Welding Machines and Spare Parts Pictures:

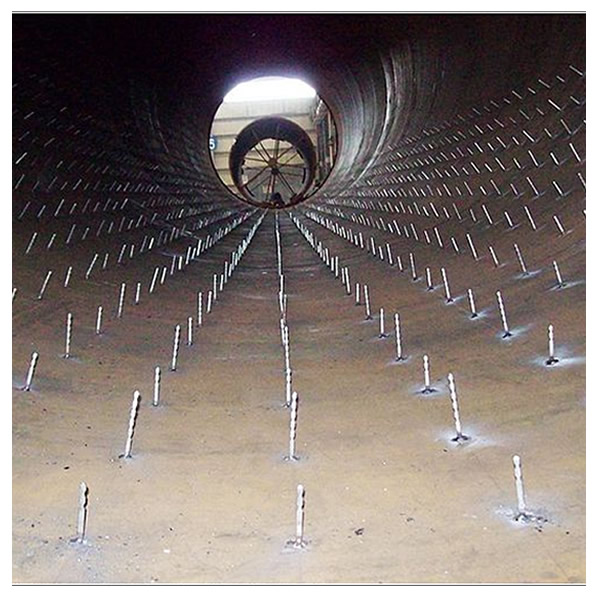

7. Stud Welding Machine Working Palce:
