CB T3822-99 Adjustable Chain Stopper

CB/T3822-99 Adjustable Chain Stopper

CB/T3822-99 adjustable chain stopper is a newly developed and produced chain stopper. Its main feature is that the top block is adjustable. The gap between anchor and the top blocks is eliminated by tightening the screw. Adjustable chain stopper has simply structure, easy operation. It greatly simplifies the work of installation and commissioning. We can supply other types of chain stopper and mooring products. For more information, please feel free to contact us.

Features of CB/T3822-99 Adjustable Chain Stopper

1. Model Type: adjustable roller chain stopper;

2. Standard: CB/T 3822-1999 type B;

3. Material: cast steel;

4. Applicable to Chain Diameter 22 to 137mm;

5. Weight: 72 to 13746kg;

6. Smooth surface, no any defects to influence the strength of chain stopper;

7. Flexible rotation, anti-rust paint;

8. Duarble, high quality, stable performace;

9. Competitive price, prompt delivery, excellent service;

10. Certificate: CCS,ABS,BV,LR,NK etc.;

11. Customized service is available;

CB T3822-99 Adjustable Chain Stopper

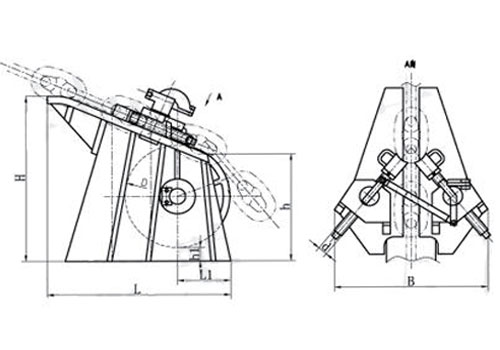

Drawing of CB/T3822-99 Adjustable Chain Stopper Type B

Unit:mm

Nominal Size

Anchor Chain Diameter

B

H

h

h1

L

L1

D

Screw d

Weight(kg)

24

22~24

383

427

278

35

458

133

264

Tr24กม5

72

28

26~28

449

498

322

41

538

156

308

Tr28กม5

118

32

30~32

515

569

368

47

616

179

352

Tr32กม6

175

36

34~36

580

641

415

53

694

201

396

Tr36กม6

249

40

38~40

644

712

461

59

770

224

440

Tr40กม7

342

44

42~44

708

783

507

66

848

246

484

Tr44กม7

455

48

46~48

773

854

553

71

925

268

528

Tr48กม8

591

52

50~52

837

925

599

76

1002

291

572

Tr52กม8

753

56

54~56

902

996

644

82

1079

313

616

Tr55กม8

939

60

58~60

966

1067

691

88

1156

335

660

Tr60กม9

1154

64

62~64

1031

1139

737

95

1233

358

704

Tr65กม10

1401

68

66~68

1095

1210

783

100

1310

380

748

Tr70กม10

1681

73

70~73

1172

1298

840

107

1406

408

803

Tr75กม10

2079

78

76~78

1256

1388

898

115

1502

436

858

Tr80กม10

2537

84

81~84

1353

1494

967

123

1618

469

924

Tr85กม12

3169

90

87~90

1449

1601

1036

132

1734

503

990

Tr90กม12

3897

95

92~95

1530

1690

1094

140

1830

531

1045

Tr95กม12

4583

102

100~102

1642

1815

1175

150

1965

570

1122

Tr100กม12

5673

107

105~107

1723

1903

1232

157

2031

598

1177

Tr110กม12

6849

114

111~114

1836

2028

1312

168

2196

637

1254

Tr120กม14

7921

120

117~120

1932

2136

1382

176

2312

670

1320

Tr120กม14

9238

127

122~127

2045

2260

1463

188

2446

710

1397

Tr130กม14

10950

137

130~137

2206

2438

1578

201

2639

765

1507

Tr140กม14

13746
