OCIMF Type Chain Stopper

Chain stopper is positioned between the windlass and the hawse pipe deck, used for clamping the chain. Anchor-handling, anchor chains tension can be transferred to the ship, the anchoring machine is not in the state of stress. When sailing, chain stopper bearing anchor and anchor chain part of gravity, and will receive the hawse pipe within the anchor stick to hull, without collision.

The role of chain stopper :

A.let chain flat positionon the wheel

B.prevent the decline of chain

C.fixed anchor chain tension spread to the hull

D.make beautiful design.

Anchor devices abandon the role of the chain:

A. make the end of the anchor fixed

B.make chain not in chaos

C.quickly disengagement chain and facilitate in case of emergency

D.easy maintain anchor chain overhaul

Model: roller bar type chain stopper, cast steel bar chain stopper and cast lever chain stopper

OCIMF Type Chain Stopper

1. Safe Working Load: 2000KN

2. Max. Breaking Load: 4000KN

3. Material: cast steel

4. Color: red, black, grey etc.

5. Plinth is optional

6. Chain Diameter: 54mm,55mm,56mm,76mm,77mm.78mm

7. Polished, galvanized smooth surface;

8. Certificate: CCS,ABS,BV,LR,NK etc.

9. Can be customized according to customer’s drawing

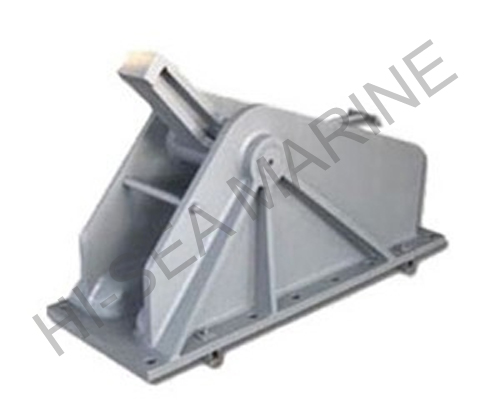

OCIMF Type Chain Stopper with Plinth

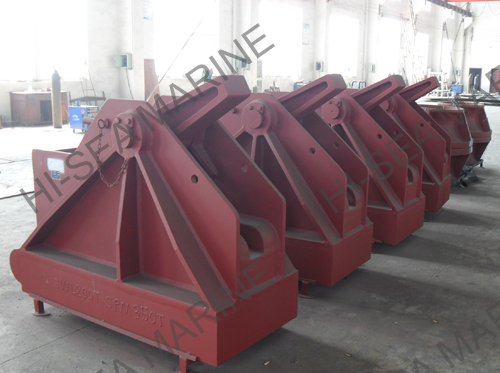

OCIMF Type Chain Stopper

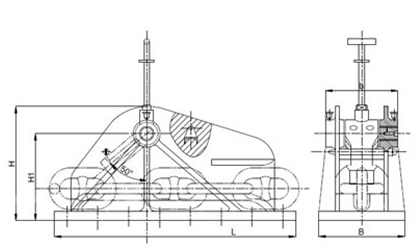

Drawing of OCIMF Type Chain Stopper

Nominal Dia. of Chain(mm)	Dimensions(mm)					Weight(kg)
	L	B	H	H1	b4
54-56	1336	474	631	481	400	488
76-78	1800	640	850	648	540	1421
