JIS F2031 Pawl Type Chain Cable Stopper

JIS F2031 Pawl Type Chain Cable Stopper is cast steel chain stopper applicable to Grade 3 Anchor Chain. Pawl type chain stopper is disposed between the connecting tube and anchor windlass to clamp the anchor chains and prevent the chain slipping out. When at anchor, anchor chain stopper transmits the pull strength from the chain to the hull and then reduce the working load on the windlass. JIS F2031 pawl type chain stopper is strictly produced complying with the shipbuilding standard JIS F2031. It can withstand 80% of chain cable’s minimum breaking load and never go to permanent deformation. We supply all type of chain stoppers and can design new types according to customer’s special requirements. For more information, please feel free to contact us.

Features of JIS F2031 Pawl Type Chain Cable Stopper

1. Model Type: pawl type chain cable stopper;

2. Material: cast steel;

3. Applicable to Grade 3 anchor chain (diameter 58mm to 122mm);

4. Weight: 495 to 3660kg;

5. Painted lubricating oil on friction surface, other part painted bitumen paint;

6. Red, black, grey or other color coating;

7. Withstand 80% of chain cable’s minimum breaking load;

8. No defects on surface to influence the strength of chain stopper;

9. Competitive price, prompt delivery, excellent service;

10. Certificate: ABS,CCS,BV,NK,LR etc.;

11. Can be customized

JIS F2031 Pawl Type Chain Cable Stopper

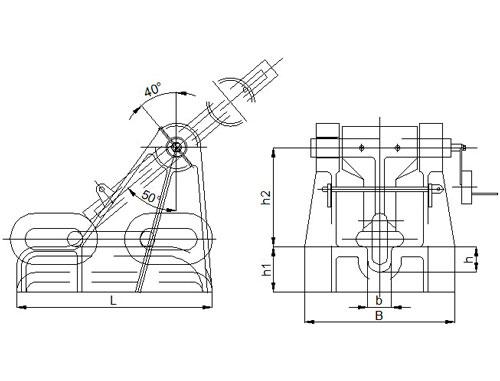

Drawing of JIS F2031 Pawl Type Chain Cable Stopper

Nominal Chain Diameter	Dimensions(mm)						Weight(kg)
Nominal Chain Diameter	B	b	L	h	h1	h2	Weight(kg)
58~60	600	95	780	102	182	394	495
62~64	630	101	835	109	191	421	582
66~68	660	107	885	116	200	446	701
70~73	700	115	950	125	212	478	846
76~78	750	123	1015	133	222	511	1014
81~84	800	134	1095	143	235	550	1268
87~90	850	143	1170	153	248	588	1798
92~95	900	151	1235	162	260	620	1769
97~102	950	161	1350	175	276	665	2277
105~107	1000	170	1400	185	289	703	2664
111~114	1050	180	1480	195	302	742	6054
117~122	1120	191	1585	207	318	790	3660
