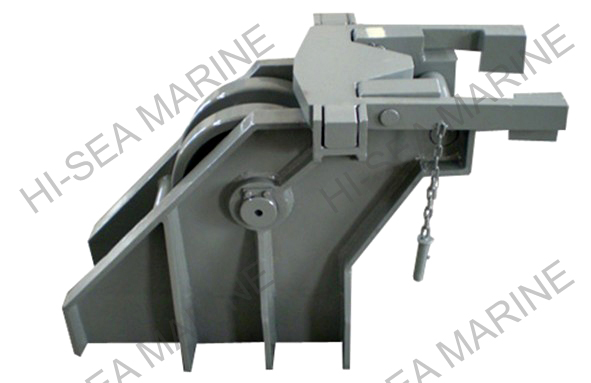

Roller Chain Stopper

Roller Chain Stopper

Roller chain stopper is disposed between the windlass and hawsepipe, used to clamp the anchor chains and help reduce the pull tension from the chain to the windlass. Chain stopper can withstand 80% of the chain minimum breaking load and does not experience permanent deformation under that circumstance.

We supply all types of chain cable stoppers: knife-type chain stopper, spiral type chain stopper, roller type chain stopper, adjustable chain stopper and other types. If you’re interested in our products, please feel free to contact us.

Features of Roller Pawl Type Chain Stopper

1. Cast Steel Material;

2. Nominal Chain Diameter: 30~64mm;

3. Withstand 80% of Chain Cable’s Breaking Load;

4. High Quality, Durable, With Stable Performance;

5. Competitive Price, Short Delivery, Excellent Service;

6. Certificate: ABS,CCS,BV,NK,LR etc.;

7. Customized Service is Available

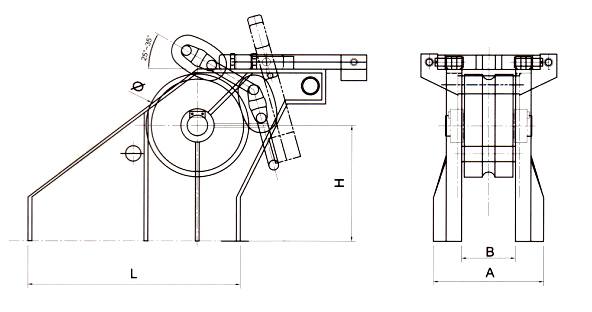

Drawing of Roller Pawl Type Chain Stopper

Nominal Chain Size (mm)	A (mm)	B (mm)	H (mm)	Ф (mm)	L (mm)
30-32	320	158	310	320	620
34-36	360	178	360	360	680
38-40	430	204	390	400	750
42-44	460	224	430	440	810
46-48	490	242	470	480	920
50-52	510	260	510	520	1010
54-56	540	280	540	560	1100
58-60	550	298	580	600	1150
62-64	590	316	620	640	1210

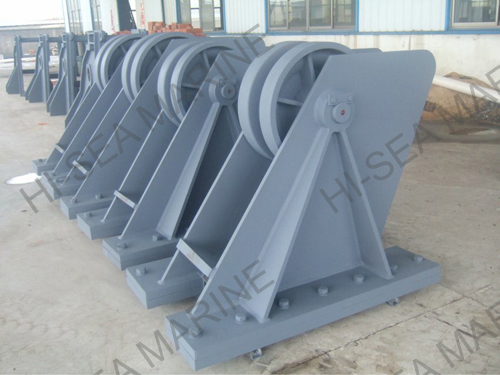

Roller Chain Cable Stopper

Roller Pawl Type Chain Stopper
