JIS F2015 Cast Steel Chain Stopper

JIS F2015 Cast Steel Chain Stopper

JIS F2015-1987 bar type chain stopper is made of cast steel. It is a common and necessary device for ship mooring. Disposed between anchor windlass and hawsepipe, chain stopper can fix the anchor chain and prevent it slip out. Chain stoppers have different types: cast lever chain stopper, screw type chain stopper, bar type chain stopper, pawl type chain stopper etc. We can supply all types of chain stoppers. For more information, please feel free to contact us.

Features of JIS F2015 Cast Steel Chain Stopper

1. Model Type: bar type chain cable stopper;

2. Material: cast steel;

3. Nominal Anchor Chain Diameter:38~78mm;

4. Nominal Weight: 111 to 682kg;

5. Finish: anti-rust paint;

6. Process: casting, forging, welding,painting

7. Withstand 80% of chain cable¡¯s minimum breaking load;

8. Certificate: ABS,CCS,BV,LR,NK etc.

9. Customized service is available.

JIS F2015 Cast Steel Chain Stopper

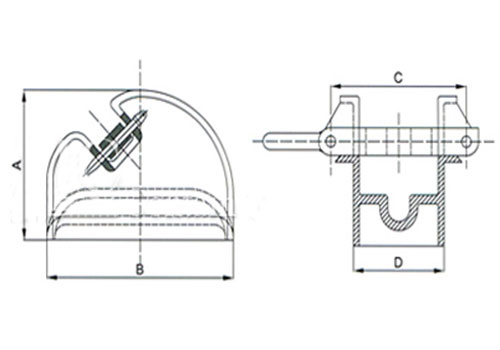

Drawing of JIS F2015-87 Cast Steel Bar Type Chain Stopper

Nominal No.

Nominal Diameter of Anchor Chain

Size(mm)

Weight(kg)

A

B

C

D

40

38~40

378

540

390

336

111

44

42~44

412

590

424

366

139

48

46~48

450

640

460

397

176

52

50~52

491

695

494

428

216

56

54~56

528

745

530

457

261

60

58~60

564

795

564

488

319

64

62~64

600

850

600

517

380

68

66~68

635

900

636

547

452

73

70~73

675

960

678

582

561

78

76~78

715

1020

720

617

682
