Jis F2023 Cast Bar Type Chain Stopper

JIS F2023 Cast Steel Chain Stopper

JIS F2023 cast steel chain stopper is small size marine anchor chain cable stopper. It is disposed between anchor windlass and hawsepipe. The lever can clamp the anchor chain and prevent chains slip out. When the vessel is mooring, chain stopper transport the pull strength of anchor and chain to the vessel. It reduces the working load and protect the anchor windlass. We can supply all kinds of marine chain stoppers. For more information, please feel free to contact us.

Features of JIS F2023 Cast Steel Chain Stopper

1. Model Type: small size bar type chain stopper;

2. Standard: JIS F 2023-1976;

3. Material: cast steel;

4. Nominal Anchor Chain Diameter: 17 to 36mm;

5. Finish: anti-rust paint;

6. Color: red,black, grey, blue etc.

7. High quality, durable, long life time;

8. Withstand 80% of anchor chain minimum breaking load;

9. Competitive price, short delivery, excellent service;

10. Certificate: CCS,ABS,BV,LR,GL etc.;

11. Can be customized

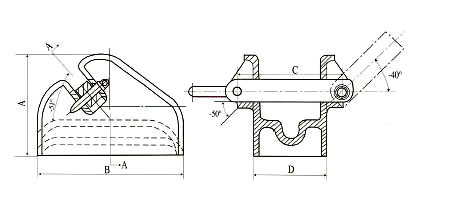

Drawing of Jis F2023 Cast Bar Type Chain Stopper

unit:mm

Number 19 22 25 28 32 36
Diameter of Apply Anchor Chain 17~19 20~22 23~25 26~28 30~32 34~36
A 190 216 241 270 305 342
B 270 310 345 385 435 490
C 200 226 256 280 320 254
D 134 153 175 193 220 246
Weight(kg) 17 24 33 44 68 92

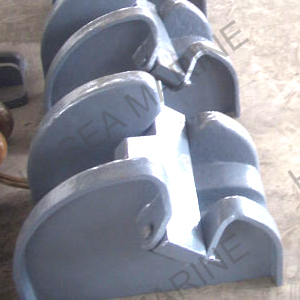

Photo of Jis F2023 Cast Steel Bar Type Chain Stopper
