Container 55 Degree Dovetail Twistlock

Container 55 Degree Dovetail Twistlock

Container 55 degree dovetail twistlock is made by high quality casting steel with hot dip galvanizing on the surface. It is used with dovetail foundation to fix the bottom of container. It is designed with a flat base that can be installed in a slipper frame or welded directly.

Product Details:

1. Material:High quality casting steel

2. Type: Single type

3. Surface treatment: Hot dip galvanized

4. Finish: Shop primer

5. Application: Container, shipping

6. Weight: 6.5KG

7. M.B.L tension: 500KN

8. M.B.L shear: 420KN

9. M.B.L compression: 2000KN

10. All items are approved by major classification societies.

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

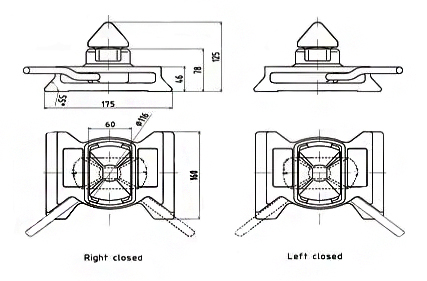

Sketch of the container 55 degree dovetail twistlock

Container 55 Degree Dovetail Twistlock HSCL21
