Container Single Stacker

Container Singer Stacker

Container single stacker is used for the connection of the bottom of ship container, or the up and down connection for bottom connection. And every procedure of it are controlled strictly to make sure the quality of hooks before delivery.

Product Details:

1. Material:High tensile steel

2. Type: Single type

3. Surface treatment: Hot dip galvanized

4. Finish: Shop primer

5. Application: Container, shipping

6. Weight: 2.3KG

7. M.B.L shear: 420KN

8. M.B.L compression: 800KN

9. All items are approved by major classification societies.

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

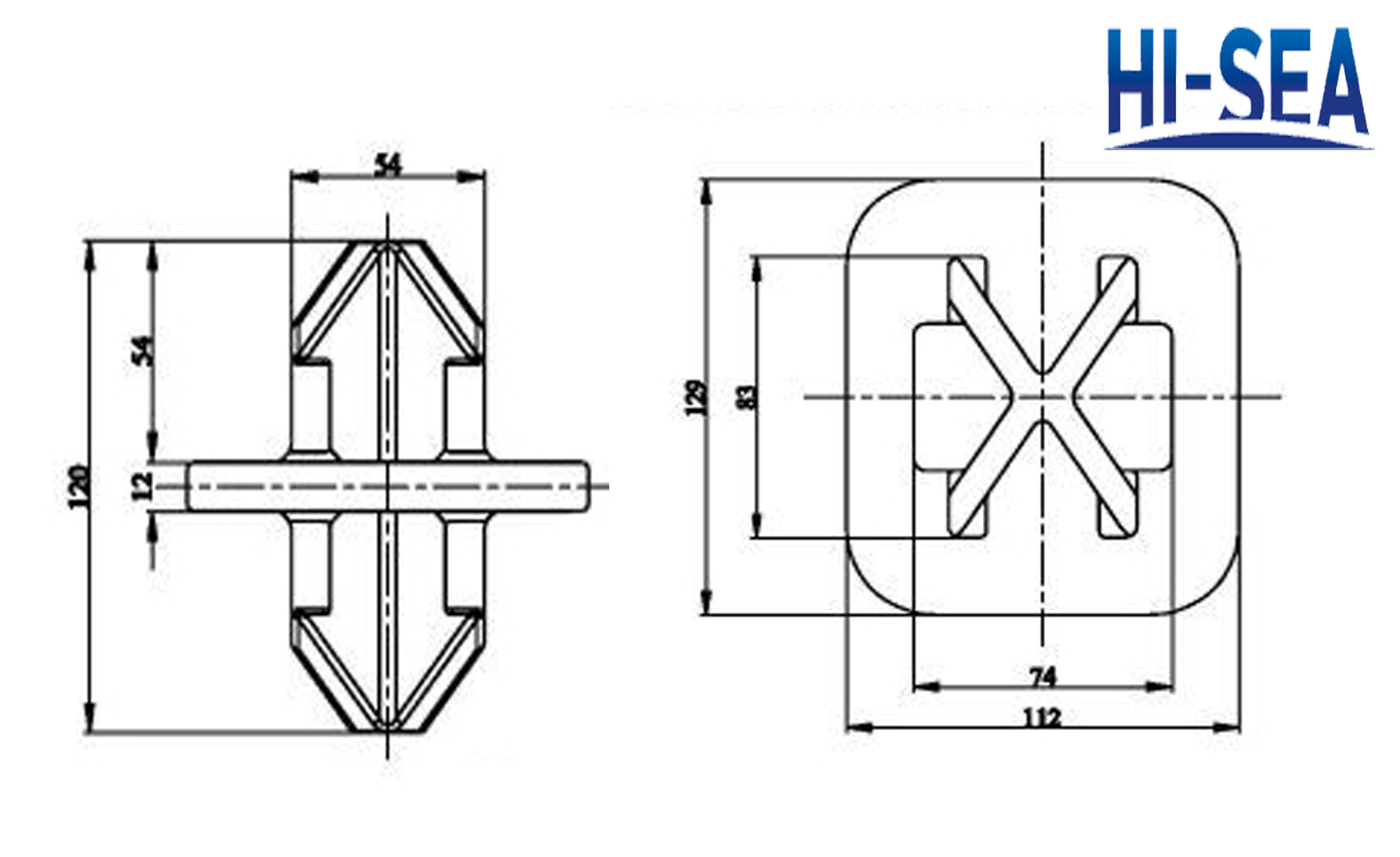

Sketch of the container single stacker

Container Single Stacker HSCS36
