Semi-automatic Twistlock

Semi-automatic Twistlock

Container semi-automatic twistlock is the most widely used twistlock at present. It can more effectively save the loading and unloading time on port. Connecting the twistlock with container corner fittings, and when the container fall into the sapce, the pressure of it make the twistlock locked automatic. And pull the lever when you need to open it.

Product Details:

1. Material:Forged steel

2. Surface treatment: Hot dip galvanized

3. Finish: Shop primer

4. Application: Container, shipping

5. Weight: 5.5KG

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Sketch of the semi-automatic twistlock

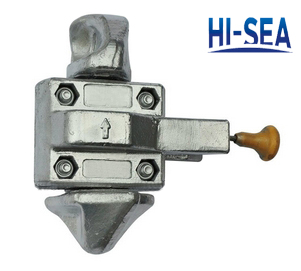

Semi-automatic Twistlock HSA32
