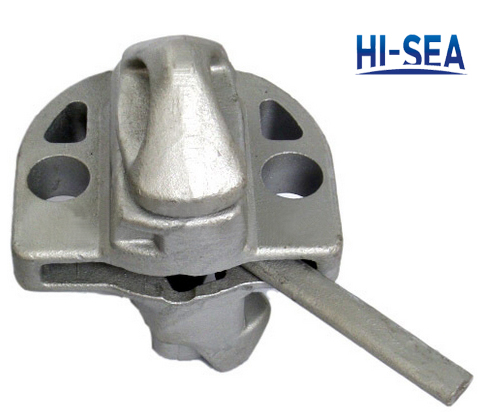

Fixed Base Twistlock

Fixed Base Twistlock

Container fixed base twistlock is installed on the flat car or trailer to install containers. Every procedure of it are controlled strictly to make sure the quality of hooks before delivery. We never allow bad goods flow to the market and ensure to supply our customers the high quality and security products.

Product Details HSCF28:

1. Material:Casting steel

2. Surface treatment: Hot dip galvanized

3. Finish: Shop primer

4. Application: Container, shipping

5. M.B.L tension: 500KN

6. M.B.L shear: 420KN

7. M.B.L compression: 2000KN

8. Customized design is available

9. All items are proves by major classification society

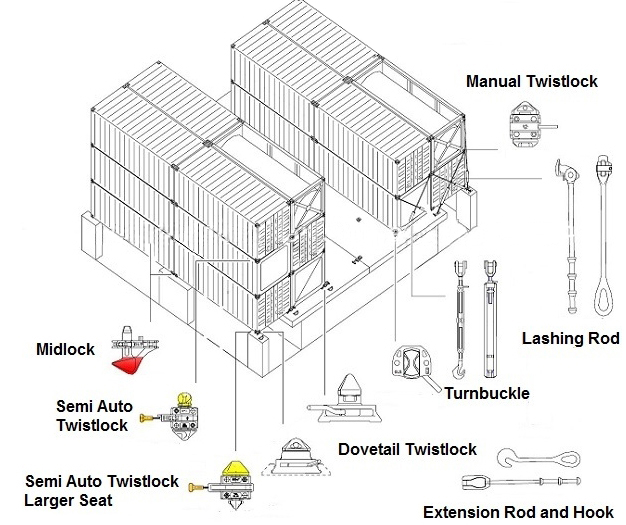

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.
