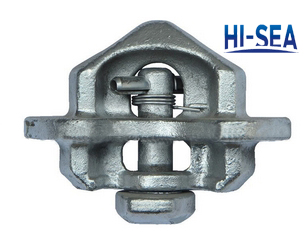

Container Hanging Stacker

Container Hanging Stacker

Container hanging stacker is made by high quality ship building steel with hot dip galvanizing on the surface. It has advantages of light weight, good corrosion resistance, high quality and simple operation. And all the items are approved by major classification societies.

Product Details:

1. Material:Ship building steel

2. Surface treatment: Hot dip galvanized

3. Finish: Shop primer

4. Application: Container, shipping

5. Weight: 2.8KG

6. M.B.L shear: 420KN

7. M.B.L compression: 800KN

8. All items are approved by major classification societies.

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

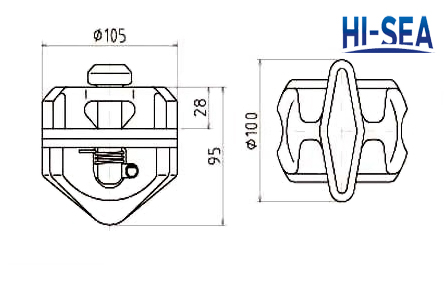

Sketch of the container hanging stacker

Container Hanging Stacker HSCH34
