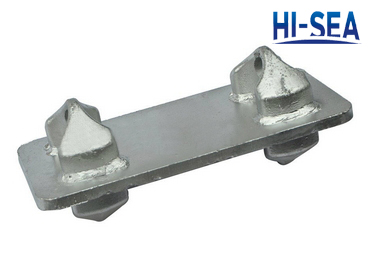

Container Double Stacker

Container Double Stacker

Stacking cone are often used on the corner fitting of container for the counterpoint of container and limiting the movement of horizontal direction. It is specially designed for linking the upper and lower containers.

Product Details:

1. Material:Casting steel

2. Type: Transversal double type, longitudinal double type

3. Surface treatment: Hot dip galvanized

4. Finish: Shop primer

5. Application: Container, shipping

6. Weight: 7.5KG, 7.7KG, 8.4KG

7. Length: 203mm, 216mm, 258mm

8. M.B.L shear: 420KN

9. M.B.L compression: 800KN

10. All items are approved by major classification societies.

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

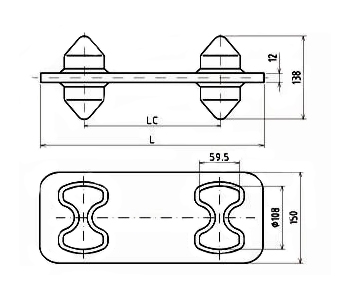

Sketch of the container double stacker

Container Double Stacker HSCD35
