Emergency Fluorescent Pendant Light
Emergency Fluorescent Pendant Light is applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc. It is conformed to CB/T3857-1999 standard, approved by CCS (China Classification Society) and ZY of China Fishery inspection.
Product details:
Place of origin: Chongqing, China (Mainland)
Brand name: HI-SEA
Power factor: >0.85
Lamp holder: G13
Cable outside diameter: 12¦µ16
Protection class: IP56
Product characteristic:
1. Enclosure is stretching formed of high quality sttelplate or stainless steel, lampshade is PC molded.
2. Junction box inlet; buckel locking, easy to open and close; convenient for maintenance.
3. Builit- in chock ballast, with stable perfomance; after equipped with capacitor, power factor is not less than 0.85; electronic ballast can be installed on request; power factor is not less than 0.95.
4. Light source is suppied by users; please specify voltage and frequency when ordering.
5. B15d lamp holder can be equipped; for 24V/15W emergency lighting.
Specifications:
Type |
Power |
Voltage |
Power factor |
Weight |
Remark |
JCY22-2E |
2¡Á20W |
110V/60HZ 220V/50HZ 220V/60HZ |
>0.85 |
7.2kg |
With emergency |
JCY22-2EF |
7.2kg |
With emergency and guard |
|||
JCY32-2E |
2¡Á30W |
9.0kg |
With emergency |
||
JCY32-2EF |
9.0kg |
With emergency and guard |
|||
JCY42-2E |
2¡Á40W |
11kg |
With emergency |
||
JCY42-2EF |
11kg |
With emergency and guard |

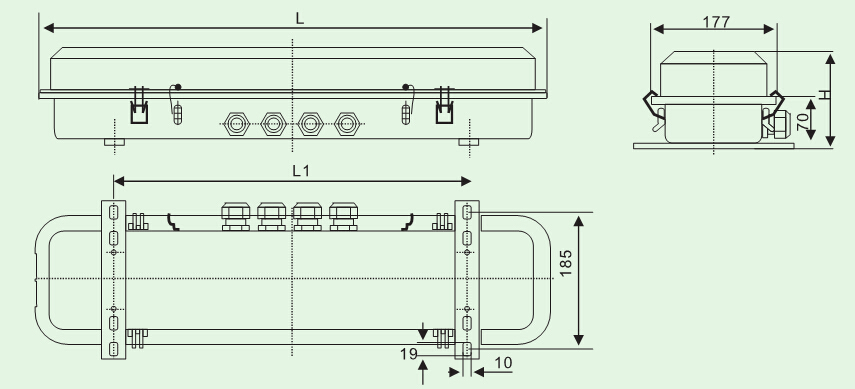

Type |
L |
L1 |
H |
JCY22-2E |
692 |
480 |
134 |
JCY22-2EF |
692 |
480 |
155 |
JCY32-2E |
992 |
700 |
134 |
JCY32-2EF |
992 |
700 |
155 |
JCY42-2E |
1299 |
700 |
134 |
JCY42-2EF |
1299 |
700 |
155 |
