Marine Ship Fluorescent Corner Light
[Search Related Products]
Marine Ship Fluorescent Corner Light:
Marine Ship Fluorescent Corner Light is one kind of Corner lights equipped the shock absorber inside.It applied to illumination of passage in ships,such as the residence,retiring room,dining room,cab,operator of the sailors and passengers.Marine ship fluorescent corner light conform to national army standard GJB13A-97 MARINE ELECTRIC NORMS and CB1246-94 MARINE ILLUMINATE LIGHTS COMMONLY USED NORMS.
Products characteristic:
1.Equipped the shock absorber inside,shockproof-type.
2.The shell adopts the steel plate tensioned.
3.The lampshade is made of engineering plastic,has the features of non-discolor and fine softness etc.
4.The lamp equipped B15d lampholder,used for 24V/15W emergency bulb illumination,the edge of lampshade marks the ¡ñ marking,remark clear that need the emergency device when order.
Specification:
Type |
Power |
Voltage |
Power factor |
Lamp holder |
Protection class |
Weight |
JBY20-1J |
1*20W |
110V/60Hz 220V/50Hz 220V/60Hz |
>0.85 |
G13 |
IP34 |
4.0kg |
JBY20-1EJ |
>0.85 |
4.0kg |
||||
JBY30-1J |
1*30W |
>0.85 |
5.2kg |
|||
JBY30-1EJ |
>0.85 |
5.2kg |

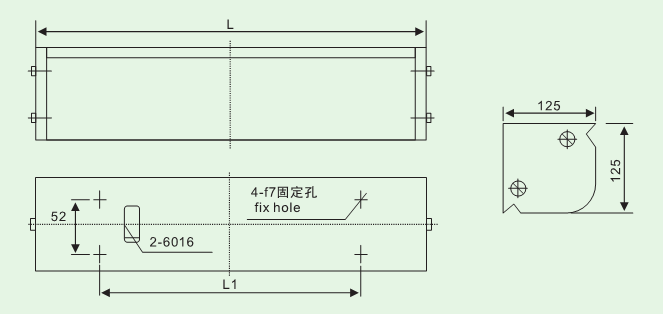

Marine Ship Fluorescent Corner Light Drawing
