Fluorescent Pendant Light

Fluorescent Pendant Light

Fluorescent Pendant Light is applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc. It is conformed to CB/T3857-1999 standard, approved by CCS (China Classification Society) and ZY of China Fishery inspection.

Product details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Power factor: >0.85

Lamp holder: G13

Cable outside diameter: 12¦µ16

Protection class: IP56

Product characteristic:

1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.

2. In order to prevent from electric shocking, equipped with a copper earthing rod with the mark(a red circle) in the lights

3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.

4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the red circle marking, remark clear that need the emergency device when order.

5. Equipped compensating capacitance inside the lamp, also has the good effect of start

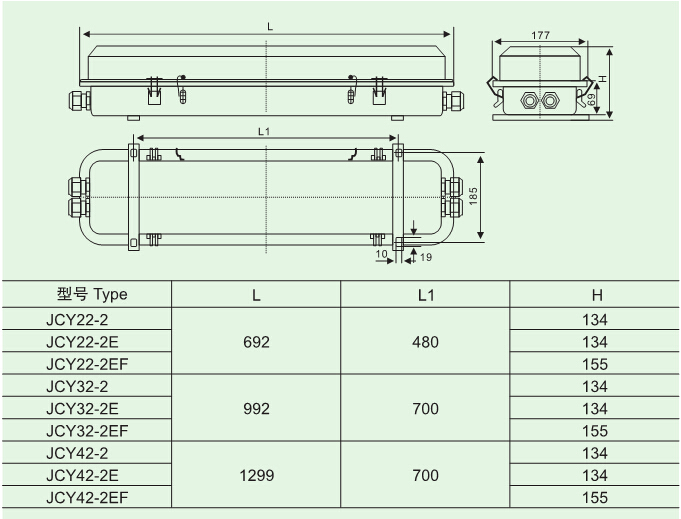

Specifications:

Type

Power

Voltage

Weight

Remark

JCY22-2

2¡Á30W

110V/60HZ

220V/50HZ

220V/60HZ

7.2kg

_

JCY22-2E

7.2kg

With emergency

JCY22-2EF

7.2kg

With emergency and guard

JCY32-2

2¡Á20W

9.0kg

_

JCY32-2E

9.0kg

With emergency

JCY32-2EF

9.0kg

With emergency and guard

JCY42-2

2¡Á40W

11kg

_

JCY42-2E

11kg

With emergency

JCY42-2EF

11kg

With emergency and guard

Specifications:
