Fluorescent Corner Light
[Search Related Products]
Fluorescent Corner Light:
Fluorescent Corner Light is one kind of Corner lights applied to illumination of passage in ships,such as the residence,retiring room,dining room,cab,operator of the sailors and passengers.The installation way of the lamp is wall-type,compact structure and delicacy appearance.The lampshade is plug-in type,which has fine contact function.The lampshade is made of good quality organic,non-discolor and fine softness ray.
Specification:
Type |
Power |
Voltage |
Power factor |
Lamp holder |
Protection class |
Weight |
Remark |
JBY15-1 |
1*15W |
110V/60Hz 220V/50Hz 220V/60Hz |
>0.85 |
G13 |
IP34 |
3.2kg |
!! |
JBY15-1E |
>0.85 |
G13 |
IP34 |
3.2kg |
with emergency |
||
JBY20-1 |
1*20W |
>0.85 |
G13 |
IP34 |
4.0kg |
!! |
|
JBY20-1E |
>0.85 |
G13 |
IP34 |
4.0kg |
with emergency |
||
JBY30-1 |
1*30W |
>0.85 |
G13 |
IP34 |
5.2kg |
!! |
|
JBY30-1E |
>0.85 |
G13 |
IP34 |
5.2kg |
with emergency |

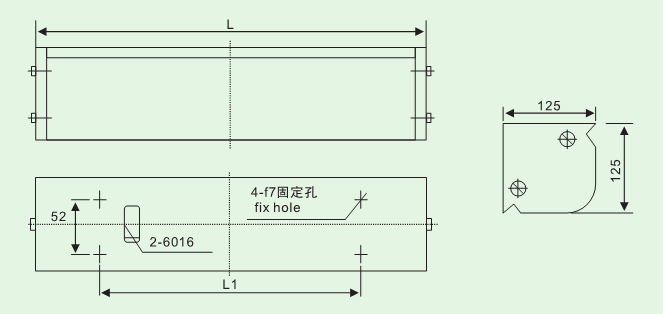

Fluorescent Corner Light Drawing
