Fluorescent Steel Pendant Light

Fluorescent Steel Pendant Light

Fluorescent Steel Pendant Light is applied to illumination of water dripping, water spattering, water coagulation place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather decketc. The environmental temperature for work is －20℃＋55℃ It is conformed to JISF8008-2002 standard and 《GRADE ENTRY NORMS FOR STEEL SHIPS》, approved by CCS (China Classification Society).

Product details:

Place of origin: Chongqing, China (Mainland)

Brand name: HI-SEA

Power factor: >0.85

Lamp holder: G13

Cable outside diameter: 12Φ16

Protection class: IP56

Product characteristic:

1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.

2. In order to prevent from electric shocking, equipped with a copper earthing rod with the mark(a red circle) in the lights

3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.

4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the red circle marking, remark clear that need the emergency device when order.

5. Equipped compensating capacitance inside the lamp, also has the good effect of start

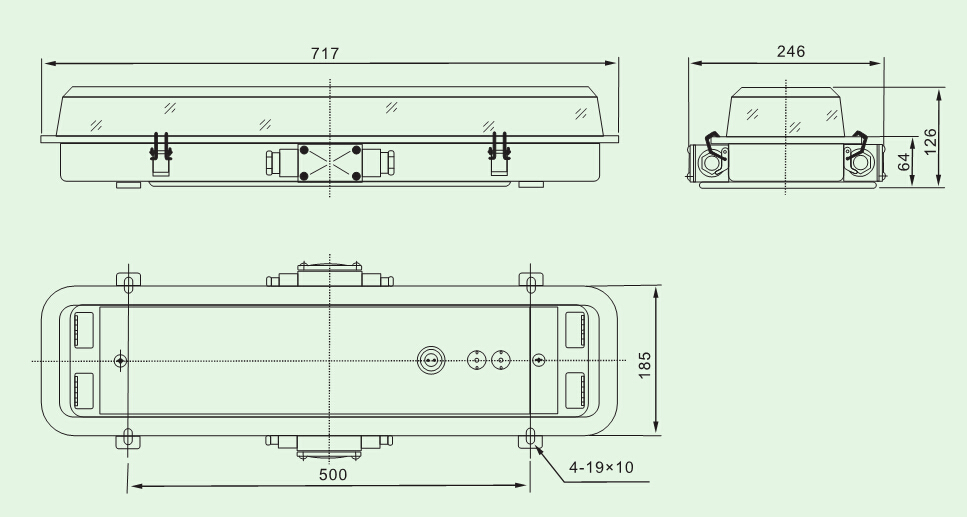

Specifications:

Specifications:
