H-Beam Shot Blasting Equipment

H-Beam Shot Blasting Equipment

HP8016(HP1018) H-Beam steel structure, section shot blasting machine belong to the table roller type shot blasting machine, suitable for the field of construction, ship-building and bridge industry, etc.

Mainly used in eliminating the stress and cleaning the surface rust of the large H and I beam steel, great size H-beam steel.

The H-bem Shot Blasting Machine, composed of shot blasting chamber, sealed auxiliary chamber before and after, before and after the roller conveyor shot blasting assembly, the pill material circulation purification system, dedusting system and electrical control part.

Technical Parameters
Dimensions of the work piece being cleaning	Cross section(W*H)	800*1600mm
Dimensions of the work piece being cleaning	Length of the working piece	15000mm
Production Rate(Passing Speed of the Working Piece)		400~2500mm/min
Impeller Head	Type	Q034
	Quantity	8
	Shot Blasting Capacity	8*280kg/min
	Power Rate	8*11kw
Elevator	Lifting Capacity	120t/h
Elevator	Power Rate	7.5kw
Longitudinal Spiral Conveyer	Conveying Capacity	120t/h
Longitudinal Spiral Conveyer	Power Rate	5.5Wkw
Separator	Separating Capacity	120t/h
Ball-cleaning System	Load-carrying Capacity	4293m3/h
Input/output Roller Way	Load-carrying Capacity	1000kg/m
	Power of Motor	2*2.2kw
	Delivery Rate	400~4000mm/min
	Length of the Roller	13000mm
Shot Material in Volume at the First Time		5000kg
Dust-removing System	Blowing Wale	1600m3/h
Dust-removing System	Power Rate	15kw
Power		AC/380V/50HZ
Total Rate		About 138kw

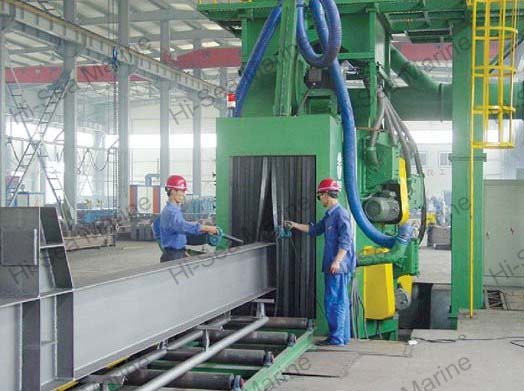

Working Room

H-Beam Shot Blasting Equipment

Packing

H-Beam Shot Blasting Equipment
