Steel Plate Abrator
1) These Steel plate abrator mainly be used for all kinds of steel plate surface cleaning and strengthening. Preheating, derusting, paint, metal components can be used for drying.
2) The equipment adopts PC control, belongs to the 1990s international advanced level of large equipment.
3) Derusting & industry host (cleaning) USES a cantilever centrifugal efficient shot, full of sand separator curtain type pills, Cleaning using special high strength nylon &industry rolling brush and high-pressure blower secondary cleaning device, Preheat and drying &industry using a variety of heating mode, Spray &industry adopts high voltage non-gas spraying.
4) HS series steel pretreatment line is absorbs the domestic and foreign similar product advantage and the design and manufacture.
Main Parameters
Model |
HS2500-6 |
HS2224-12 |
|
Size of work piece |
Section |
2500*400*15000mm |
2200*2400*15000mm |
Conveyor |
Speed |
0.5~5m/min |
0.5~5m/min |
Power |
3*3kw |
3*5.5kw |
|
Model |
Q0342 |
Q0342 |
|
Shot blaster |
Shot blasting speed |
65~70m/s |
65~70m/s |
No*unit power |
6*18.5kw |
12*18.5kw |
|
Lifter |
Power |
7.5kw |
11kw |
Longitudinal conveyor |
Conveying capacity |
120T/h |
180T/h |
Power |
5.5kw |
7.5kw |
|
Feeding conveyor |
Conveying capacity |
120T/h |
180T/h |
Power |
2*4kw |
4kw+5.5kw |
|
Dust collection system |
Model |
LMC-18 |
LMF-2 |
Ventilation capacity |
12000m3/h |
24000m3/h |
|
Centrifugal ventilator |
Model |
4-72-5A |
4-72-8C |
Power |
15kw |
22kw |
|
Cleaning system |
Ventilation capacity |
6762 m3/h |
5000 m3/h |
Power |
18.5kw |
15kw |
|
Overall power |
154kw |
214kw |
|
Overall dimension |
7900*3100*3300mm |
9750*3600*4580mm |

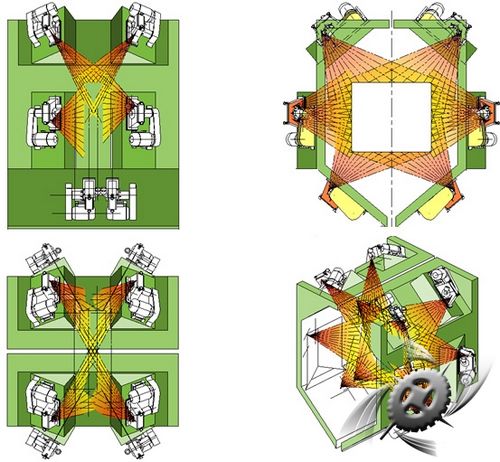

Shematic Diagram
Balls
