Lever Type Load Binder

Lever Type Load Binder

Lever type load binder can be used to tighten chains with fixed length, and you need something else to lock the load binder. Compared with the traditional one, it is more flexible and can meet lifting requirements in all aspects. The safety work load limited of it is from 2200lbs to 11000lbs.

Product Details:

1. Model: Lever type load binder

2. Material: Carbon steel, melleable iron

3. Standard: US type, European type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 2200lbs-11000lbs

7. Weight: 3.52lbs-19.7lbs

8. Usage: Port, metallurgy, ship building, electricity,etc.

9. Packaging: Carton then on steel pallet

10. Special specification and marks can be made according to order quantity

Specification:

Chain Size

WLL

B.L.

Weight

A

B

C

D

E

H

G

in

lbs

lbs

lbs

mm

mm

mm

mm

mm

mm

mm

1/4-5/16

2200

7800

3.52

18.5

17.3

14.2

11.42

8.27

8.07

0.35

5/16-3/8

5400

19000

8.37

15.43

23.2

19.5

15.55

11.22

11.22

0.51

3/8-1/2

9200

28000

12.11

17.24

26.4

22.1

17.64

12.99

12.2

0.59

1/2-5/8

11000

44000

19.7

21

30.1

25.9

20.87

14.37

14.37

0.74

Lever Type Load Binder

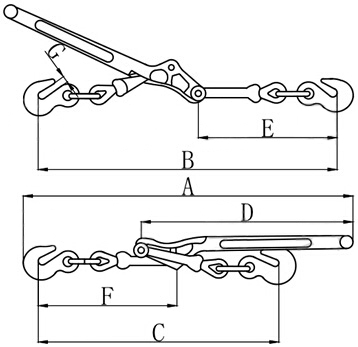

Sketch of lever type load binder

Lever Type Load Binder

Lever Type Load Binder
