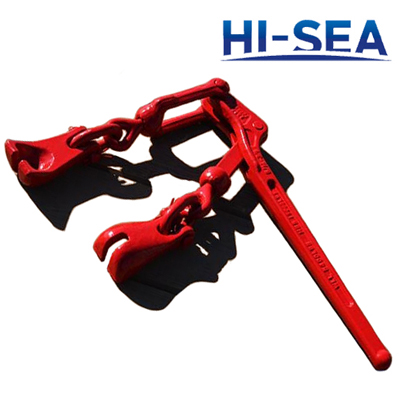

Lever Type Load Binder with Claw Hook
Lever type load binder with claw hook has advantages of safety, reliability, high working efficiency and easy to operate. Compared with the traditional one, it is more flexible and can meet lifting requirements in all aspects. And we can provide it with sufficient supply, fast delivery time and complete specification.
Product Details:
1. Model: Lever type load binder with claw hook
2. Material: Carbon steel, melleable iron
3. Technology: Forged, casting
4. Surface: Power coating, Galvanized
5. WLL.: 2200lbs-9200lbs
6. Weight: 3.62kg-12.38kg
7. Usage: Port, metallurgy, ship building, electricity,etc.
8. Packaging: Carton then on steel pallet
9. Special specification and marks can be made according to customer¡¯s requirements.
Specification:
Chain Size |
Breaking Load |
Weight |
A |
B |
C |
D |
E |
F |
G |
in |
lbs |
lbs |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
1/4-5/16 |
2200 |
3.62 |
18.43 |
19.1 |
15.74 |
11.42 |
9.13 |
8.82 |
0.31 |
5/16-3/8 |
5400 |
8.56 |
25.67 |
256 |
24.36 |
15.43 |
1.28 |
12.28 |
0.47 |
3/8-1/2 |
9200 |
12.38 |
30.47 |
31.53 |
27.71 |
17.24 |
15.44 |
15.44 |
0.63 |

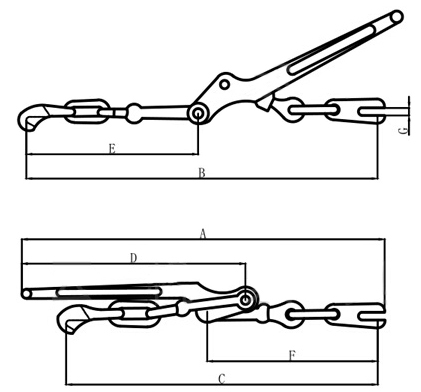

Sketch of lever type load binder with claw hook
