US Type Standard Ratchet Type Load Binder

US Type Standard Ratchet Type Load Binder

Load binder plays an important role in fixing and tensioning goods during transportation, loading and storage. After being fastened, it can avoid the object falling off and damaging. Beside that, it has advantages of safety, reliability, high working efficiency and easy to operate.

Product Details:

1. Model: US type standard ratchet type load binder

2. Material: Carbon steel, melleable iron

3. Standard: US type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 2200lbs-13000lbs

7. Weight: 3.52lbs-14.38lbs

8. Special specification and marks can be made according to order quantity

Specification:

Chain Size

WLL

B.L.

Weight

A

B

D

E

E1

F

G

in

lbs

lbs

lbs

mm

mm

mm

mm

mm

mm

mm

1/4-5/16

2200

7800

3.52

7.16

0.89

1.77

16.22

21.26

17.79

0.35

5/16-3/8

5400

19000

10.5

13.9

1.3

2.6

22.64

30.64

25.24

0.51

3/8-1/2

9200

33000

12.9

13.9

1.3

2.6

24.13

32.13

27.04

0.59

1/2-5/8

13000

46000

14.38

13.9

1.3

2.6

26.45

34.45

30.07

0.74

US Type Standard Ratchet Type Load Binder

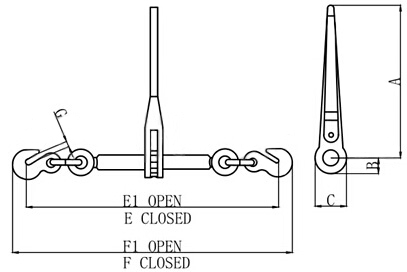

Sketch of US Type Standard Ratchet Type Load Binder

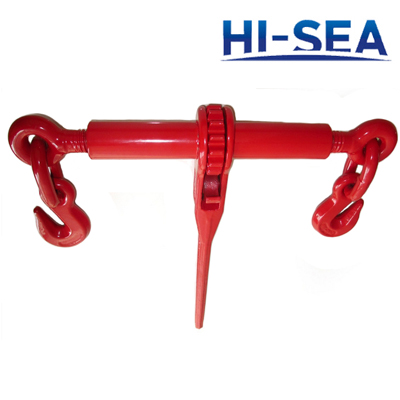

US Type Standard Ratchet Type Load Binder

Ratchet Type Load Binder
