Ratchet Type Load Binder with Jaw and Jaw

Ratchet Type Load Binder with Jaw and Jaw

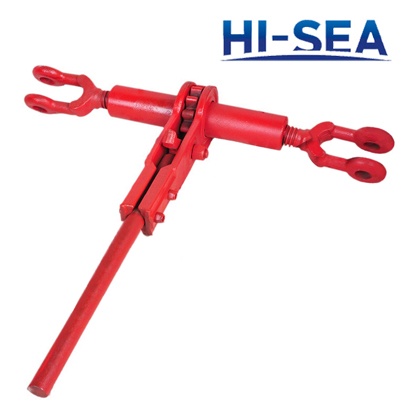

Ratchet type load binder with jaw and jaw is die forged from 45# steel and melleable iron with powder coating on the surface. It can be widely used for the binding of containers, vehicles and other goods in the process of shipping. After being fastened, it can avoid the object falling off and damaging.

Product Details:

1. Model:Ratchet type load binder with jaw and jaw

2. Material: Carbon steel, melleable iron

3. Technology: Forged, casting

4. Surface: Power coating, Galvanized

5. B.L.: 85000lbs-133600lbs

6. Weight: 16.53kg-27.56kg

7. Usage: Port, metallurgy, ship building, electricity,etc.

8. Packaging: Carton then on steel pallet

9. Special specification and marks can be made according to customer¡¯s requirements.

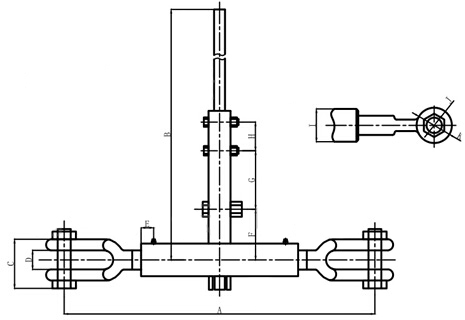

Specification:

Size

Breaking Load

Weight

A

B

C

D

F

G

H

in

lbs

lbs

mm

mm

mm

mm

mm

mm

mm

1-3/8

85000

16.53

572

560.5

75

35

92.5

108

53

1-3/4

133600

27.56

850.9

558.8

123.8

60.3

111

108

53

Ratchet Type Load Binder with Jaw and Jaw

Ratchet Type Load Binder with Jaw and Jaw

Ratchet Type Load Binder with Jaw and Jaw

Ratchet Type Load Binder with Jaw and Jaw
