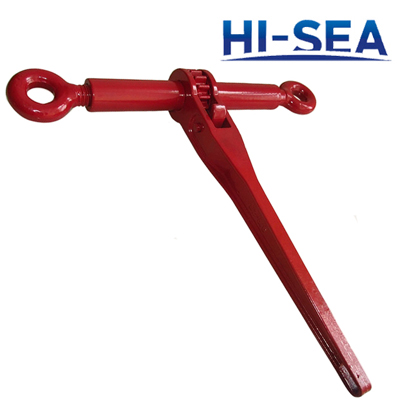

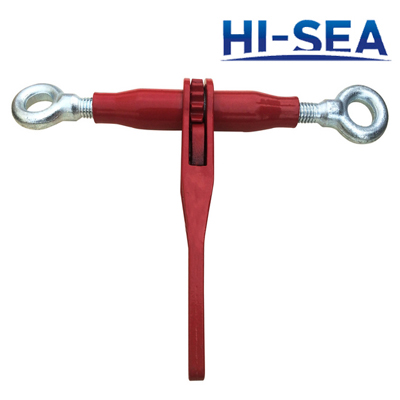

Ratchet Type Load Binder Without Hook

Ratchet Type Load Binder Without Hook

Ratchet type load binder can be widely used in offshore oil engineering, lifting tugboat and other extreme environment. It is die forged from 45# steel and melleable iron with powder coating on the surface. The safety work load limited of it is from 5.4T to 13T. And special specification and marks can be made according to customer¡¯s requirements.

Product Details:

1. Model: Ratchet type load binder without hook

2. Material: Carbon steel, melleable iron

3. Standard: US type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 5400lbs-13000lbs

7. Weight: 7.8lbs-8.5lbs

8. Special specification and marks can be made according to customer¡¯s requirements.

Specification:

Chain Size

WLL

B.L.

Weight

A

B

C

E

E1

F

in

lbs

lbs

lbs

mm

mm

mm

mm

mm

mm

5/16-3/8

5400

19000

7.8

13.92

1.3

2.6

13.7

21.7

0.79

3/8-1/2

9200

33000

7.8

13.92

1.3

2.6

13.7

21.7

1.02

1/2-5/8

13000

46000

8.5

13.92

1.3

2.6

14.17

22.17

1.02

Ratchet Type Load Binder Without Hook

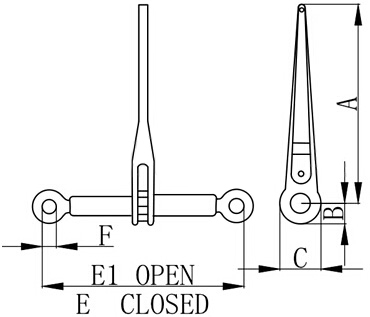

Sketch of Ratchet Type Load Binder Without Hook

Ratchet Type Load Binder Without Hook

Ratchet Type Load Binder Without Hook

Ratchet Type Load Binder Without Hook

Ratchet Type Load Binder Without Hook
