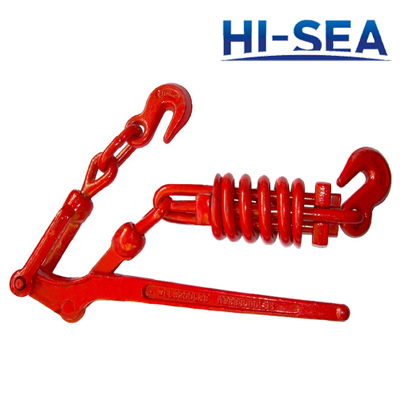

Spring Load Binder
Spring load binder is used to tighten the steel chains around loads. It is die forged from 45# low caebin steel and melleable iron with powder coating on the surface. Since the work load of them is controlled by hand operating, so please don¡¯t overload the chain binder, use them within the rated worling load limited.
Product Details£º
1. Model: Spring load binder
2. Material: Carbon steel, melleable iron
3. Technology: Forged, casting
4. Surface: Power coating, Galvanized
5. WLL: 5400lbs-9200lbs
6. Weight: 7.2kg-8.8kg
7. Usage: Port, metallurgy, ship building, electricity,etc.
8. Packaging: Carton then on steel pallet
9. Special specification and marks can be made according to customer¡¯s requirements.
Specification£º
Chain Size |
WLL |
Weight |
A |
B |
C |
D |
E |
F |
G |
in |
lbs |
kg |
in |
in |
in |
in |
in |
in |
in |
1/4-5/16 |
5400 |
7.2 |
26.27 |
17.8 |
21.89 |
11.42 |
8.07 |
15.97 |
0.31 |
3/8-1/2 |
9200 |
8.8 |
37 |
35.83 |
31.49 |
17.64 |
12.99 |
18.7 |
0.59 |

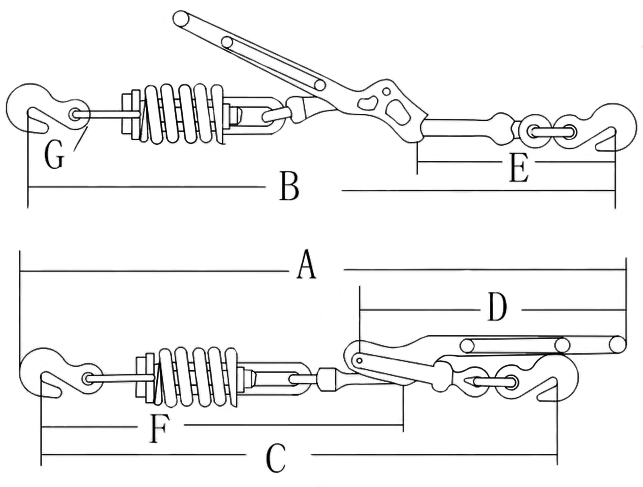

Sketch of spring load binder
