20W Simplified Voyage Data Recorder
[Search Related Products]20W Simplified Voyage Data Recorder
Features:
1. Power: 20W
2. Weight: approx. 25kg
3. Voltage: AC110/220V, 50Hz/60Hz, DC24V
4. Data recording: continuous recoding 30 days (main cabinet unit), 48 hours (recording medium)
Configuration and main parameter:
Components |
Quantity |
Dimensions (unit: mm) |
Weight |
Main cabinet unit |
1 |
437¡Á340¡Á100£¨L*W*T£© (with mounting accessories) |
9.6kg |
Remote acquisition unit |
1 |
244¡Á214¡Á47 (L*W*T) (with mounting accessories) |
1.4kg |
Protective data capsule(PDC) |
1 |
205¡Á305 (D*H) (with mounting accessories) |
8.9kg |
Float-free protective data capsule(FPDC) |
1 |
420¡Á150(D*H) (with mounting accessories) |
3.9kg |
Interior microphone |
4 |
¦Õ108¡Á50(D*H) (with mounting accessories) |
0.2kg |
Exterior microphone (IP56) |
2 |
¦Õ108¡Á50(D*H) (with mounting accessories) |
0.2kg |
Remote alarm panel |
1 |
175¡Á140¡Á38(L*W*T) (with the fixed shelf) |
0.7kg |
Total weight |
|
|
24.9kg |

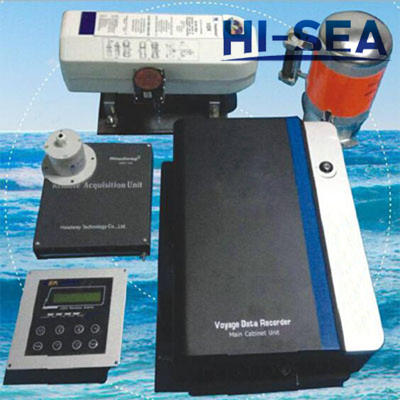

Product picture:
20W Simplified Voyage Data Recorder(SVDR)
