Survival Craft Two Way VHF Radio Phone

Survival Craft Two Way VHF Radio Phone

Technical specifications:

  • General requirements

1. Power for the DC7.4V

2. Channel complying with the provisions of the Radio Regulations Appendix 18.

3. Able to work on single and dual-frequency

4. Able to use voice for distress and safety and public service communication

5. Approved by GMDSS requirements

6. ¡°16¡± channel for the independent red is SOS channel

7. Standard: IMOA809(19), GB15304-94, IEC-61097-12, MSC.149(77)

8. There should be a label consistent with the provision of A.809 (19) Annex1 section 13.

  • Transmitter section

1. Able to single-channel work within 156.300MHz ¡«156.875MHz band

2. Transmitting frequency band: 156.025MHz ¡«157.425MHz

3. Receiving frequency band: 160.625MHz ¡« 162.000MHz

4. Transmission power: 5W, you can manually select as low as 1W

5. Launch audio harmonic distortion: <10%

6. Audio response: +1/-3dB of +6dB/octave

7. The maximum deviation: ¡À5KHz

8. Parasitic radiation: <0.25¦ÌV

9. Current consumption: 5W 1.3A

  • Receiver section

1. Tuning frequency: 156.025MHz-163.275MHz

2. The first intermediate frequency 21.7KHz, the second IF 450KHz

3. SINAD: 20dB

4. Adjacent channel selectivity: >70dB

5. Spurious response rejection: >70dB

6. Intermodulation rejection: >68dB

7. Spurious emission suppression: >2nW

8. Current consumption: Max. radio output 0.9A, standby 0.3A

9. Audio response: +1/-3dB of +6dB/octave

10. AC noise: <-40dB

11. Audio output power: 0.3W at 10% distortion with an 8¦¸ load conditions, the built-in speaker 0.5W

Product pictures£º

Survival Craft Two Way VHF Radio Phone

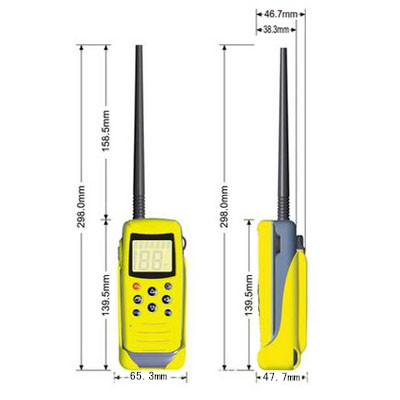

Dimensions of Survival Craft Two Way VHF Radio Phone

Survival Craft Two Way VHF Radio Phone

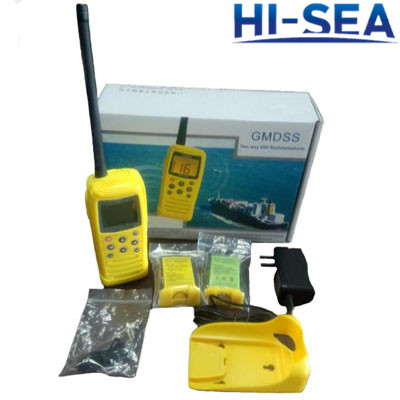

Accessories of Survival Craft Two Way VHF Radio Phone
