Marine Professional Walkie Talkie

Marine Professional Walkie Talkie

Features:

1. Easy to see LCD with large channel indication

2. Easy to use, easy to hold

3. Quick channel selection with favorite channel function

4. Li-Ion battery and charger standard

5. Optional speaker-microphone, HM165

6. Powerful 5W output power

7. Dual/Tri-watch functions

8. 4-step battery life indicator

9. Weather channel with weather alert

10. 2-step power saver

11. Auto scan function

12. Instant access to channel 16 or channel 9

13. Optional battery case for using with alkaline cells

Specifications:

General:

•Frequency range: Tx 156.025–157.425MHz, Rx 156.050–163.275MHz

• Usable channels: INT, USA, CAN, WX channels

• Type of emission: 16K0G3E (FM)

• Current drain (at 7.4V DC): Tx at 5W output 1.5A, Rx AF max. 200mA typical

• Operating temperature range: –20°C to +60°C; –4°F to +140°F

• Antenna impedance: 50Ω (STUD)

• Dimensions (W×H×D): 62×141.5×43 mm; (projections not included) 27⁄16×59⁄16×111⁄16 in

• Weight (approx.): 305g; 10.8oz (With BP-252, FA-SC58V and MB-109)

Transmitter:

• Output power: 5W (High), 1W (Low), 2W (High, with alkaline cells)

• Max. frequency deviation : ±5kHz

• Frequency error: ±10ppm

• Spurious emissions: –68dBc

• Adjacent channel power: 70dB

• Audio harmonic distortion: 10% (at 60% dev.)

• Residual modulation: 40dB

Receiver:

• Receive system: Double-conversion, superheterodyne

• Sensitivity (at 12dB SINAD): 0.25μV typical

• SQL sensitivity (at threshold): 0.35μV typical

• Adjacent Ch. selectivity: 70dB typical

• Spurious response: 70dB typical

• Intermodulation rejection: 70dB typical

• Hum and noise ratio: 40dB

• Audio output power: 0.35W typical at 10%, distortion with an 8Ω load

Product picture:

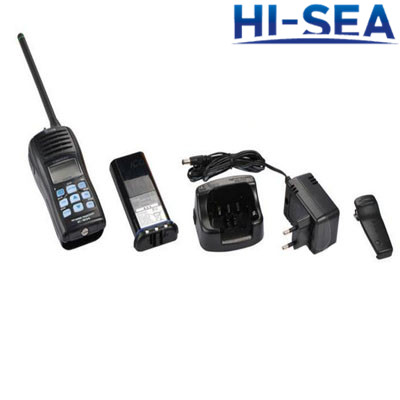

Accessories of Marine Professional Walkie Talkie
