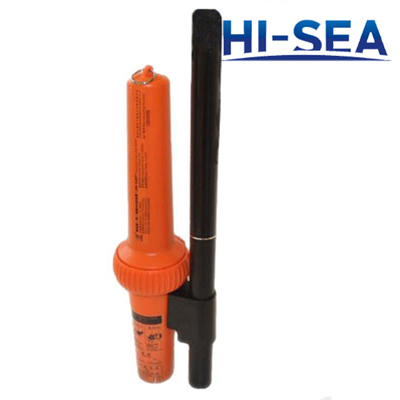

Search and Rescue Radar Transponder

Search and Rescue Radar Transponder

This marine SART adopts the modular design on the basis of AIS technology. With the features of low power consumption, small volume, light weight and high reliability, it is a new marine safety rescue device because it can send the location information of crew in distress to the AIS device. It is approved by related CCS and GMDSS requirements.

Technique data:

1. Operating frequency: 161.975MHz、162.025MHz

2. Modulation mode: GMSK/FM

3. Frequency error: ±0.5MHz

4. Transmit power: ≥31.5dBm

5. Modulation spectrum: ±10KHz modulation sideband≤－20dBc, 25KHz～62.5KHz/－25KHz～－62.5KHz modulation sideband≤－40dBc

6. Operating temperature: -20℃ to 55℃

7. Dimensions: (D)120mm×(L)365mm

8. Weight: approx.900g

Another type:

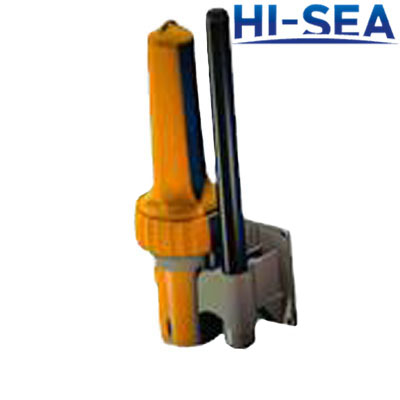

Marine Search and Rescue Radar Transponder
