VHF Marine Transceiver with Built-in DSC

VHF Marine Transceiver with Built-in DSC

Features:

1. Simple operation with large keys

2. Easy to hear speaker

3. Built-in DSC meets RTCM SC101 requirement

4. Rugged waterproof construction

5. Optional COMMANDMIC IITM

6. Usable channels: USA, INT, CAN, WX channels

Specifications:

  • General

1. Frequency coverage: Tx 156.025-157.425MHz, Rx 156.050-163.275MHz

2. Mode: FM (16K0G3E), DSC (16K0G2B)

3. Channel spacing: 25 KHz

4. Current drain (at 13.8V): Tx high 5.5 A max. Max. audio 1.5A max.

5. Power supply requirement: 13.8V DC¡À15%

6. Frequency stability: ¡À10ppm

7. Operating temperature: -20¡æ¡«+60¡æ

8. Antenna impedance: 50¦¸

9. Dimensions: 164(W)¡Á78(H)¡Á139.3(D)mm

10. Weight: approx. 1070g

  • Transmitter

1. Output power: 25W(high), 1W(low)

2. Modulation system: variable reactance frequency modulation

3. Max. frequency deviation: ¡À 5.0KHz

4. Frequency error: ¡À10.0ppm(-20¡æ to +60¡æ)

5. Spurious emissions: <-70dBc

6. Residual modulation: >40dB

  • Receiver

1. Receive system: double conversion superheterodyne

2. Sensitivity (12dB SINAD): 0.22uV (typical)

3. Squelch sensitivity: 0.22uV

4. Intermodulation rejection ratio: >70dB

5. Spurious response rejection ratio: >70dB

6. Adjacent channel selectivity: >70dB

7. Audio output power: 4.5W(typical) at 10% distortion with a 4¦¸ load

Note: All stated specifications are subject to change without notice or obligation.

Product dimensions:

VHF Marine Transceiver with Built-in DSC

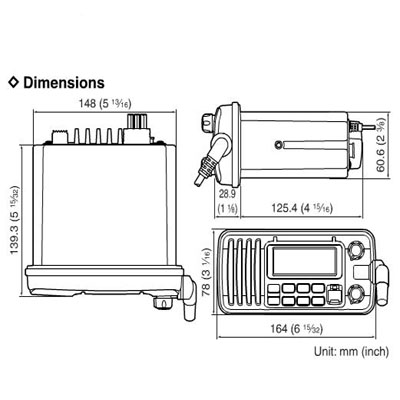

Dimensions of VHF Marine Transceiver with Built-in DSC
