Marine Explosion-proof Two Way VHF Radiophone

[Search Related Products]

Marine Explosion-proof Two Way VHF Radiophone

Marine Explosion-proof Two Way VHF Radiophone

It is a fully featured GMDSS survival radio with user-friendly design and features. It is designed to meet the latest GMDSS and ETSI standards. Reliable and easy to use, it meets the military standard (MIL) 810C, D, E, and F. With explosion-proof and waterproof function, it can be used in the tough marine environment.

Product parameter:

Frequency range

136-174MHz/330-400MHz/403-470MHz/450-527MHz

Number of channel

128 channels

Channel spacing

12.5/22/25KHz

Sensitivity

(12dB SINAD) EIA 0.25¦ÌV

Frequency stability

(-30¡«60¡æ, 25¡æRef.)+/-0.00025%

Intermodulation EIA

70dB

Launching output power

1W¡«5W

Adjacent channel sensitivity

60dB@12.5MHz, 70dB@25KHz

Modulation limiting

¡À2.5@1.25MHz, ¡À4.0@20KHz

FM noise

¡Ü-40dB

Rated audio

500mW

Audio distortion

3%

Audio response

300-3000MHz, +1¡«-3dB

Spurious rejection

70dB

Dimension (H¡Á W ¡ÁD)mm

137¡Á57.5¡Á40.0

Standard

MIL STD810C/D/E, TIA/EIA603, IP54

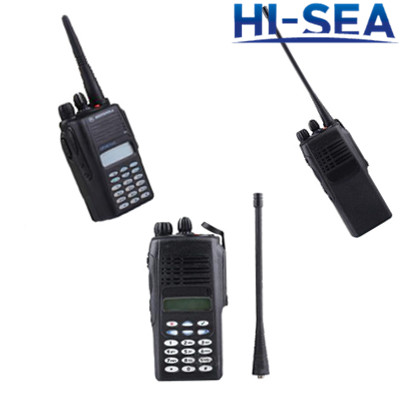

Product showing:

Marine Explosion-proof Two Way VHF Radiophone

Explosion-proof Two Way VHF Radiophone
