VHF Marine Transceiver

VHF Marine Transceiver

Specifications:

General

• Frequency coverage: Transmit 156.025-157.425MHz

Receive 156.050-163.275MHz

• Mode: FM(16K0G3E), DSC(16K0G2B)

• Channel spacing: 25KHz

• Current drain(at 13.8V): Tx(at 25W) 5.5A max.

Max. audio 1.5A max.

• Power supply requirement: 13.8V DC±15%

• Frequency stability: ±10ppm

• Operating temperature: -20℃～+60℃

• Dimensions: 153(W)×67(H)×133(D)mm

• Weight: approx. 825g

Transmitter

• Output power: 25W(high), 1W(low)

• Modulation system: variable reactance frequency modulation

• Max. frequency deviation: ± 5.0KHz

• Spurious emissions: less than -70dBc(high), less than -56dBc(low)

• Adjacent channel power: >70dB

Receiver

• Receive system: double conversion superheterodyne

• Sensitivity(12dB SINAD): 0.22uV(typical)

• Squelch sensitivity: <0.22uv

• Intermodulation rejection ratio: >70dB

• Spurious response rejection ratio: >70dB

• Adjacent channel selectivity: >70dB

• Audio output power: 4.5W(typical) at 10% distortion with a 4Ω load

Note: All stated specifications are subject to change without notice or obligation.

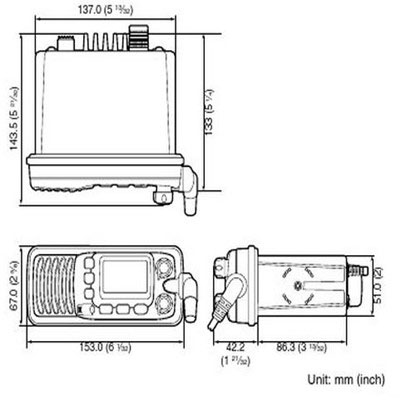

Dimensions:

Dimensions of VHF Marine Transceiver
