4 Strand Flat Steel Wire Rope

[Search Related Products]
4 Strand Flat Steel Wire Rope
Introduction:
We are mainly focus on producing wire rope with large diameter, super length, high tension and special construction. Diameter ranges from 0.18mm to 260mm in a variety of ropes of point contact, line contact and surface contact. The tensile strength can reach Grade 2160 or EEIPS.
There are all kinds of wire drawings, twisting equipmets and morden assembly line can enable pre-tension, heat treatment hot-dip galvanizing for ropes in different diameters. We can produce various of steel wire rope according to our national standards such as GB8919, GB/T20118, GB/T20067 and also international standards ISO, ASTM, EN, JIS and API etc. Got API, DNV, LR, BV, CCS, MA and KA certification,which assure good quality control.
4 Strand Flat Steel Wire Rope

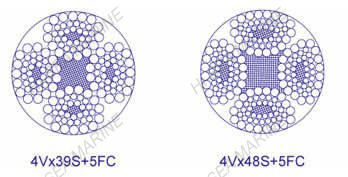

4V X 39 Shaped Strand Wire Rope:
Rope Diameter (mm) Approx Weight (kg/100m) Tensile Strength (Mpa)
1570 1670 1770 1870 1960
Natural Fiber Core Synthetic Fiber Core Minimum Breaking Strength (kN)
16 105 103 145 154 163 172 181
18 133 130 183 195 206 218 229
20 164 161 226 240 255 269 282
22 198 195 274 291 308 326 342
24 236 232 326 346 367 388 406
26 277 272 382 406 431 455 477
28 321 315 443 471 500 528 553
30 369 362 509 541 573 606 635
32 420 412 579 616 652 689 723
34 474 465 653 695 737 778 816
36 531 521 732 779 826 872 914
38 592 580 816 868 920 972 1020
40 656 643 904 962 1020 1080 1130
42 723 709 997 1060 1124 1187 --
44 794 778 1094 1164 1234 1303 --
46 868 851 1196 1272 1348 1424 --
48 945 926 1302 1385 1468 1551 --
50 1030 1010 1410 1500 1590 1680 --
Note:Minimum aggregate breaking strength = Minimum breaking strengthกม1.191(fiber core).
