Steel Wire Rope for Oil Exploration

Steel Wire Rope for Oil Exploration

Steel wire rope for oil exploration is suitable for hoisting, derricking, lifting and towing of various equipment, port load and unload and oil well drilling. The rope with wire core can be used under the shock load, headed and squeezed conditions.

Product Details:

1. Item: Steel wire rope for oil exploration

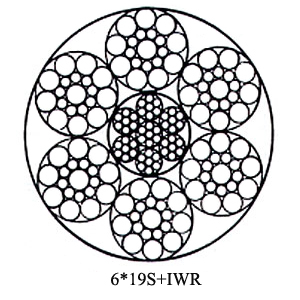

2. Construction: 6×19S+IWR

3. Type: Line contacted wire rope

4. Finish: Galvanized or ungalvanized

5. Material: Steel

6. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter (mm)	Approx.Weight (kg/100m)		Nominal Tensile Strength of Rope (Mpa)
			1570		1670		1770		1870		1960
			Mininum Breaking Load of Rope (KN)
	FC	IWR	FC	IWS	FC	IWS	FC	IWS	FC	IWS	FC	IWS
8	23.6	25.9	33.2	35.8	35.3	38	37.4	40.3	39.5	42.6	41.4	44.7
9	29.9	32.8	42	45.3	44.6	48.2	47.3	51	50	53.9	52.4	56.5
10	36.9	40.5	51.8	55.9	55.1	59.5	58.4	63	61.7	66.6	64.7	69.8
11	44.6	49.1	62.7	67.6	66.7	71.9	70.7	76.2	74.7	80.6	78.3	84.4
12	53.1	58.4	74.6	80.5	79.4	85.6	84.1	90.7	88.9	95.9	93.1	100
13	62.3	68.5	87.6	94.5	93.1	101	98.7	107	104	113	109	118
14	72.2	79.5	102	110	108	117	114	124	121	130	127	137
15	82.9	91.2	117	126	124	134	131	142	139	150	146	157
16	94.4	104	133	143	141	152	150	161	158	170	166	179
18	119	131	168	181	179	193	189	204	200	216	210	226
20	147	162	207	224	220	238	234	252	247	266	259	279
22	178	196	251	271	267	288	283	305	299	322	313	338
24	212	234	298	322	317	342	336	363	355	383	373	402
26	249	274	350	378	373	402	395	426	417	450	437	472
28	289	318	406	438	432	466	458	494	484	522	507	547
30	332	365	466	503	496	535	526	567	555	599	582	628
32	377	415	531	572	564	609	598	645	632	682	662	715
34	426	469	599	646	637	687	675	728	713	770	748	807
36	478	526	671	724	714	770	757	817	800	863	838	904
38	532	586	748	807	796	858	843	910	891	961	934	1008
40	590	649	829	894	882	951	935	1010	987	1070	1030	1120
42	650	715	914	986	972	1050	1030	1110	1090	1170	1140	1230
44	714	785	1000	1080	1070	1150	1130	1220	1190	1290	1250	1350
46	780	858	1100	1180	1170	1260	1240	1330	1310	1410	1370	1480
48	849	934	1190	1290	1270	1370	1350	1450	1420	1530	1490	1610
50	922	1010	1300	1400	1380	1490	1460	1580	1540	1660	1620	1740
52	997	1100	1400	1510	1490	1610	1580	1700	1670	1800	1750	1890
54	1080	1180	1510	1630	1610	1730	1700	1840	1800	1940	1890	2030
56	1160	1270	1620	1750	1730	1860	1830	1980	1940	2090	2030	2190
58	1240	1360	1740	1880	1850	2000	1960	2120	2080	2240	2180	2350
60	1330	1460	1870	2010	1980	2140	2100	2270	2220	2400	2330	2510
62	1420	1560	1990	2150	2120	2290	2250	2420	2370	2560	2490	2680
64	1510	1660	2120	2290	2260	2440	2390	2580	2530	2730	2650	2860
66	1610	1770	2260	2430	2400	2590	2540	2740	2690	2900	2820	3040
68	1700	1870	2400	2580	2550	2750	2700	2910	2850	3080	2990	3230
70	1810	1990	2540	2740	2700	2910	2860	3090	3020	3260	3170	3420
72	1910	2100	2690	2900	2860	3080	3030	3270	3200	3450	3350	3620
74	2020	2220	2840	3060	3020	3260	3200	3450	3380	3650	3540	3820
76	2130	2340	2990	3230	3180	3430	3370	3640	3560	3850	3740	4030
78	2240	2470	3150	3400	3350	3620	3550	3830	3750	4050	3940	4250
80	2360	2590	3320	3580	3530	3800	3740	4030	3950	4260	4140	4470
