Ship Used Steel Wire Rope

Galvanized Steel Wire Rope for Ship Use

Galvanized steel wire rope for ship use is a kind of interwoven flexible cord, which consists of strands of thin wire. Because of its unique properties, a better product hasn’t found at home and aboard to replace it fully or in a field. The service life of wire rope has a great relation with the use mathod, so it should be used according to the rules.

Product Details:

1. Item: Steel wire rope for ship use

2. Construction: 8*K19S+FC

3. Type: Compacted wire rope

4. Finish: Galvanized or ungalvanized

5. Material: Carbon Steel

6. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter	Approx.Weight(kg/100m)		Nominal Tensile Strength of Rope(Mpa)
Nominal Diameter	Approx.Weight(kg/100m)		1570		1670		1770		1870
D(mm)	FC	IWR/IWS	Minimun Breaking Load of Rope(KN)
D(mm)	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
16	104	127	133	165	141	175	150	186	158	196
18	131	160	168	209	179	222	189	235	200	248
20	162	198	207	257	220	274	234	290	247	307
22	196	240	251	312	267	331	283	351	299	371
24	233	285	298	371	317	394	336	418	355	442
26	274	335	350	435	373	463	395	491	417	518
28	318	388	406	505	432	537	458	569	484	601
30	365	446	466	579	496	616	526	653	555	690
32	415	507	531	659	564	701	598	743	632	785
34	468	572	599	744	637	792	675	839	713	886
36	525	642	671	834	714	887	757	941	800	994
38	585	715	748	930	796	989	843	1050	891	1110
40	648	792	829	1030	882	1100	935	1160	987	1230
42	714	873	914	1140	972	1210	1030	1280	1090	1350
44	784	958	1000	1250	1070	1330	1130	1400	1190	1480
46	857	1047	1100	1360	1170	1450	1240	1540	1310	1620
48	933	1140	1190	1480	1270	1580	1350	1670	1420	1770
50	1010	1240	1300	1610	1380	1710	1460	1810	1540	1920
52	1100	1340	1400	1740	1490	1850	1580	1960	1670	2070
54	1180	1440	1510	1880	1610	2000	1700	2120	1800	2240
56	1270	1550	1620	2020	1730	2150	1830	2280	1940	2400
58	1360	1670	1740	2170	1850	2300	1960	2440	2080	2580
60	1460	1780	1870	2320	1980	2460	2100	2610	2220	2760
62	1560	1900	1990	2470	2120	2630	2250	2790	2370	2950
64	1660	2030	2120	2640	2260	2800	2390	2970	2530	3140
66	1760	2160	2260	2800	2400	2980	2540	3160	2690	3340
68	1870	2290	2400	2980	2550	3170	2700	3360	2850	3550
70	1980	2430	2540	3150	2700	3360	2860	3560	3020	3760

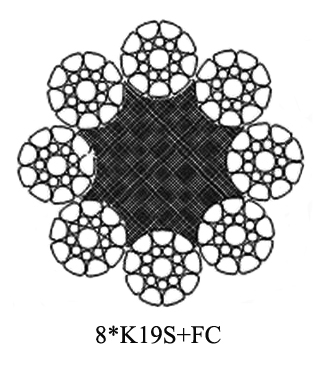

Sketch of the steel wire rope for ship use

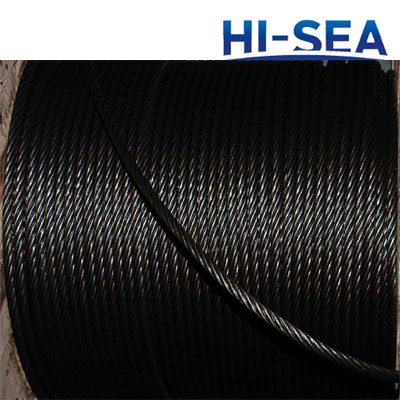

Ship Used Steel Wire Rope

Ship Used Steel Wire Rope

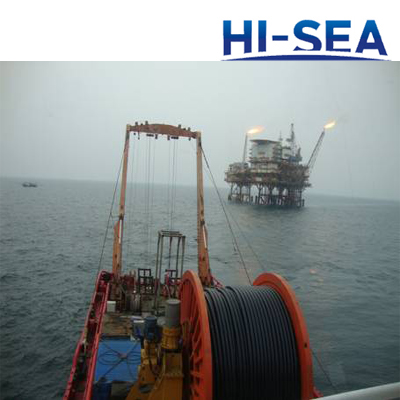

Usage of Ship Used Steel Wire Rope
