6×7 Stainless Steel Aircraft Cable

Aircraft Steel Wire Rope 6*7

The materials of aircraft cable are carbon structural galvanized wire and stainless steel wire. And the coat of galvanized steel wire rope should be continuous, no crack and spalling phenomena. After the inspection of raw materials, they are closely and neatly wrapped in the wheels according to the technological requirements.

Product Details:

1. Item: Aircraft steel wire rope 6*7

2. Construction: 6*7+FC, 6*7+IWS

3. Type: steel wire rope

4. Finish: Galvanized or ungalvanized

5. Material: Steel

6. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Diameter		Nominal Tensile Strength of Wire	Minimum Breaking Load of Fiber Core Rope	Min.Breaking Load of Steel Core Rope	Approx Weight of Steel Core	Approx Weight of Fiber Core
Rope	Wire	Nominal Tensile Strength of Wire	Minimum Breaking Load of Fiber Core Rope	Min.Breaking Load of Steel Core Rope	Approx Weight of Steel Core	Approx Weight of Fiber Core
1.58	0.17	1870	1.57	1.83	1.09	1.01
1.7	0.19	1870	1.95	2.23	1.37	1.26
1.8	0.2	1870	2.28	2.5	1.5	1.4
2.15	0.24	1870	3.28	3.6	2.2	2
2.5	0.28	1870	4.47	5	3	2.7
3.5	0.34	1870	6.23	7.32	4.4	4
3.6	0.4	1870	8.7	10.1	6	5.5
4.1	0.45	1770	10.4	13.2	7.95	7
4.5	0.5	1770	12.8	15	9.6	8.7
5.4	0.6	1670	17.5	20.4	13.8	12.5

6×7 Stainless Steel Aircraft Cable

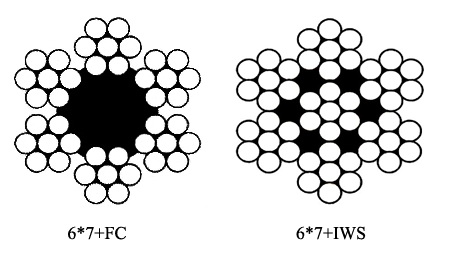

Sketch of the aircraft steel wire rope

6*7+FC Stainless Steel Aircraft Cable
