Ungalvanized and galvanized Steel Wire Rope 6×7,6×9

Ungalvanized and Galvanized Steel Wire Rope 6*7, 6*9

Ungalvanized and galvanized steel wire rope6*7, 6*9 is formed by some strands wire rope twisting around a single fibre core or a wire rope core. It has advantages of high strength, light weight, smooth work and not easy to suddenly broken.

Product Details:

1. Item: Ungalvanized and galvanized steel wire rope

2. Construction: 6×7+FC, 6×7+IWS, 6×9W+FC, 6×9W+IWS

3. Type: steel wire rope

4. Finish: Galvanized or ungalvanized

5. Material: Steel

6. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter (mm)	Approx.Weight (kg/100m)		Nominal Tensile Strength of Rope (Mpa)
			1570		1670		1770		1870		1960
			Mininum Breaking Load of Rope (KN)
	FC	IWR	FC	IWS	FC	IWS	FC	IWS	FC	IWS	FC	IWS
2	1.4	1.55	2.08	2.25	2.22	2.4	2.35	2.54	2.48	2.69	2.6	2.81
3	3.16	3.48	4.69	5.07	4.99	5.4	5.29	5.72	5.59	6.04	5.86	6.33
4	5.62	6.19	8.34	9.02	8.87	9.59	9.4	10.2	9.93	10.7	104	11.3
5	8.78	9.68	13	14.1	13.9	15	14.7	15.9	15.5	16.8	16.3	17.6
6	12.6	13.9	18.8	20.3	20	21.6	21.2	22.9	22.4	24.2	23.4	25.3
7	17.2	19	25.5	27.6	27.2	29.4	28.8	31.1	30.4	32.9	31.9	34.5
8	22.5	24.8	33.4	36.1	35.5	38.4	37.6	40.7	39.7	43	41.7	45
9	28.4	31.3	42.2	45.7	44.9	48.6	47.6	51.5	50.3	54.4	52.7	57
10	35.1	38.7	52.1	56.4	55.4	60	58.8	63.5	62.1	67.1	65.1	70.4
11	42.5	46.8	63.1	68.2	67.1	72.5	71.1	76.9	75.1	81.2	78.7	85.1
12	50.5	55.7	75.1	81.2	79.8	86.3	84.6	91.5	89.4	96.7	93.7	101
13	59.3	65.4	88.1	95.3	93.7	101	99.3	107	105	113	110	119
14	68.8	75.9	102	110	109	118	115	125	122	132	128	138
16	89.9	99.1	133	144	142	153	150	163	159	172	167	180
17	101	112	151	163	160	173	170	184	179	194	188	203
18	114	125	169	183	180	194	190	206	201	218	211	228
20	140	155	209	225	222	240	235	254	248	269	260	281
22	170	187	252	273	268	290	284	308	300	325	315	341
24	202	223	300	325	319	345	338	366	358	387	375	405
26	237	262	352	381	375	405	397	430	420	454	440	476
28	275	303	409	442	435	470	461	498	487	526	510	552
30	316	348	469	507	499	540	529	572	559	604	586	633
32	359	396	534	577	568	614	602	651	636	687	666	721
34	406	447	603	652	641	693	679	735	718	776	752	813
36	455	502	676	730	719	777	762	824	805	870	843	912
38	507	559	753	814	801	866	849	918	896	969	940	1020
40	562	619	834	902	887	959	940	1020	993	1070	1040	1130
42	619	683	919	994	978	1060	1040	1120	1100	1180	1150	1240
44	680	749	1010	1090	1070	1160	1140	1230	1200	1300	1260	1360
46	743	819	1100	1190	1170	1270	1240	1340	1310	1420	1380	1490
48	809	892	1200	1300	1280	1380	1350	1460	1430	1550	1500	1620
50	878	968	1300	1410	1390	1500	1470	1590	1550	1680	1630	1760

Ungalvanized and galvanized Steel Wire Rope 6×7,6×9

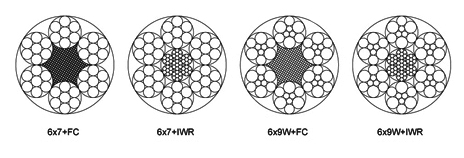

Sketch of the steel wire rope 6*7, 6*9

Steel Wire Rope 6*7
