Line Contacted Steel Wire Rope

Line Contacted Steel Wire Rope

Line contacted steel wire rope can be widely usedto heat shift steel shat, shaft lifting, blast furnace hoisting, oil drilling, belt conveyor, cableway traction, cable cars, excavators, large cast cranes, cranes, loading and unloading ships. It has advantages of not easy to break wires, wear resistance, fatigue resistance, high pull breaking limit, and around 50% longer serve life.

Product Details:

1. Item: Line contacted steel wire rope

2. Construction: 6*25Fi+FC, 6*25Fi+IWR

3. Type: steel wire rope

4. Tensile Strength: 1570, 1670, 1770, 1870, 1960 Mpa.

5. Finish: Galvanized

6. Material: Steel

7. Usage: Pulling, lifting and transportion

Safety Notice:

1. In operation, the wire rope should be in steady speed

2. Never overload, and never shock load a wire rope

3. Wire rope should be inspected regularly, including abrasion of wire rope, condition of broken wire and metal parts

4. It is important to clean and replace lubricant to the wire rope periodically.

Specification:

Nominal Diameter

Approx. Weight (kg/100m)

Nominal Tensile Strength of Rope (MPa)

1570

1670

1770

1870

1960

Minimum Breaking Load of Rope (KN)

FC

IWR

FC

IWR

FC

IWR

FC

IWR

FC

IWR

FC

IWR

8

24.3

26.8

33.2

35.8

35.3

38

37.4

40.3

39.5

42.6

41.4

44.7

9

30.8

33.9

42

45.3

44.6

48.2

47.3

51

50

53.9

52.4

56.5

10

38

41.8

51.8

55.9

55.1

59.5

58.4

63

61.7

66.6

64.7

69.8

11

46

50.6

62.7

67.6

66.7

71.9

70.7

76.2

74.7

80.6

78.3

84.4

12

54.7

60.2

74.6

80.5

79.4

85.6

84.1

90.7

88.9

95.9

93.1

100

14

74.5

81.9

102

110

108

117

114

124

121

130

127

137

16

97.3

107

133

143

141

152

150

161

158

170

166

179

18

123

135

168

181

179

193

189

204

200

216

210

226

20

152

167

207

224

220

238

234

252

247

266

259

279

22

184

202

251

271

267

288

283

305

299

322

313

338

24

219

241

298

322

317

342

336

363

355

383

373

402

26

257

283

350

378

373

402

395

426

417

450

437

472

28

298

328

406

438

432

466

458

494

484

522

507

547

30

342

376

466

503

496

535

526

567

555

599

582

628

32

389

428

531

572

564

609

598

645

632

682

662

715

34

439

483

599

646

637

687

675

728

713

770

748

807

36

492

542

671

724

714

770

757

817

800

863

838

904

38

549

604

748

807

796

858

843

910

891

961

934

1008

40

608

669

829

894

882

951

935

1010

987

1070

1030

1120

42

970

737

914

986

972

1050

1030

1110

1090

1170

1140

1230

44

736

809

1000

1080

1070

1150

1130

1220

1190

1290

1250

1350

46

804

884

1100

1180

1170

1260

1240

1330

1310

1410

1370

1480

48

876

963

1190

1290

1270

1370

1350

1450

1420

1530

1490

1610

50

950

1050

1300

1400

1380

1490

1460

1580

1540

1660

1620

1740

52

1030

1130

1400

1510

1490

1610

1580

1700

1670

1800

1750

1890

54

1110

1220

1510

1630

1610

1730

1700

1840

1800

1940

1890

2030

56

1190

1310

1620

1750

1730

1860

1830

1980

1940

2090

2030

2190

58

1280

1410

1740

1880

1850

2000

1960

2120

2080

2240

2180

2350

60

1370

1500

1870

2010

1980

2140

2100

2270

2220

2400

2330

2510

62

1460

1610

1990

2150

2120

2290

2250

2420

2370

2560

2490

2680

64

1560

1710

2120

2290

2260

2440

2390

2580

2530

2730

2650

2860

66

1660

1820

2260

2430

2400

2590

2540

2740

2690

2900

2820

3040

68

1760

1930

2400

2580

2550

2750

2700

2910

2850

3080

2990

3230

70

1860

2050

2540

2740

2700

2910

2860

3090

3020

3260

3170

3420

72

1970

2170

2690

2900

2860

3080

3030

3270

3200

3450

3350

3620

74

2080

2290

2840

3060

3020

3260

3200

3450

3380

3650

3540

3820

76

2190

2410

2990

3230

3180

3430

3370

3640

3560

3850

3740

4030

78

2310

2540

3150

3400

3350

3620

3550

3830

3750

4050

3940

4250

80

2430

2680

3320

3580

3530

3800

3740

4030

3950

4260

4140

4470

85

2750

3020

3740

4040

3980

4300

4220

4550

4460

4810

4670

5040

90

3080

3390

4200

4530

4460

4820

4730

5100

5000

5390

5240

5650

95

3430

3770

4680

5040

4970

5370

5270

5690

5570

6010

5840

6300

100

3800

4180

5180

5590

5510

5950

5840

6300

6170

6660

6470

6980

105

4190

4610

5710

6160

6080

6550

6440

6950

6800

7340

7130

7690

110

4600

5060

6270

6760

6670

7190

7070

7620

7470

8060

7830

8440

115

5030

5530

6850

7390

7290

7860

7720

8330

8160

8800

8550

9230

120

5470

6020

7460

8050

7940

8560

8410

9070

8890

9590

9310

10000

Line Contacted Steel Wire Rope

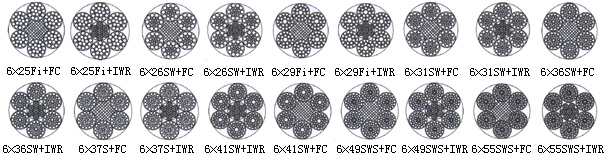

Sketch of the line contacted wire rope

Line Contacted Steel Wire Rope

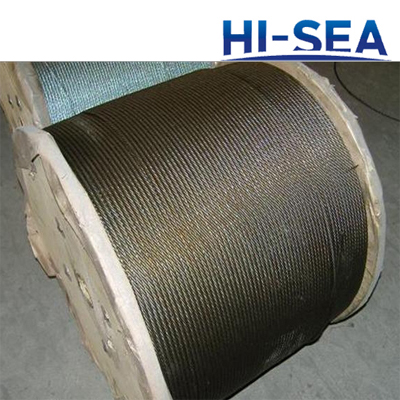

6*19S+FC Ungalvanized Line Contacted Steel Wire Rope
