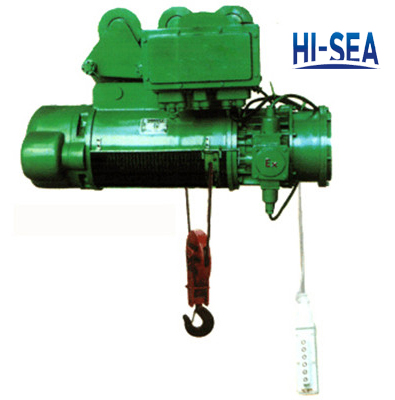

BCD Type Explosion-proof Electric Wire Rope Hoist

BCD Type Explosion-proof Electric Wire Rope Hoist

BCD type explosion-proof electric wire rope hoist adapts to the environment in factory that have explosive gas formed by inflammable gas, steam and sir of which explosion proof grade is less than B grade or C grade and ignition grade is more than T4 (135℃) group. The main body of it can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for the use of lifting heavy objects.

Producct details:

1. Minimum capacity: 0.5T: maximum capacity: 10T

2. Power supply: 380V

3. Insulation grade: F

4. Usage: lifting, fixing, binding, traction and so on.

5. The main parts of it adopt high quality steel product to ensure durability.

6. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	2	3	5	10
Lifting speed(m/min)	8	8	8	8	8	8
Traveling speed(m/min)	20	20	20	20	20	20
Voltage V	380	380	380	380	380	380
Frequency Hz	50	50	50	50	50	50
