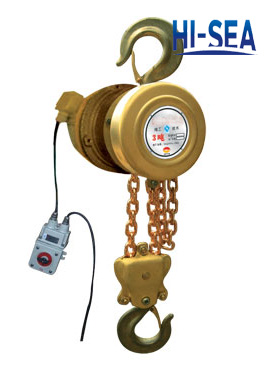

Explosion-proof Electric Chain Hoist

Explosion-proof electric chain hoist is a small-sized lifting equipment. It has the advantages of small volume, light weight, large lifting capacity. In the premise of safety guarantee, it can improve the working candition, labor productivity, and is indispensable mechanical equipment for prodution. The exposed components of it adopts special sparkless material, so its performance of proof explosion is safe and reliable.

Producct details:

1. Minimum capacity: 1.6T: maximum capacity: 12.5T

2. Usage: lifting, fixing, binding, traction and so on.

3. The main parts of it adopt high quality steel product to ensure durability.

4. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	0.5	1	1.5	2	3	5	10	20
Light height(m)	2.5	2.5	2.5	2.5	3	3	3	3
Test load(T)	0.75	1.5	2.25	3	4.5	7.5	12.5	25
Min.distance of hooks(mm)	270	270	368	444	486	616	700	1000
No.of load chain	1	1	1	2	2	2	4	8
Dia.of load chain	6	6	8	6	8	10	10	10
Net weight(kg)	9.5	10	16	14	24	36	68	155
