Low Headroom Electric Chain Hoist

Low Headroom Electric Chain Hoist

Low headroom electric chain hoist is a kind of super low type of lifting equipment. The cover of it adapts high quality aluminum alloy, which make it beautiful and light. It is suitable for workplaces with lower plant height but having strict request for hoisting height. It is especailly show its superiority for temporary factory, or within which the lifting space need to be effectively enlarged.

Producct details:

1. Minimum capacity: 1T: maximum capacity: 10T

2. Power supply: 220V/50HZ

3. Usage: lifting, fixing, binding, traction and so on.

4. The main parts of it adopt high quality steel product to ensure durability.

5. Special specifications and marks can be made according to customers requirement.

Safety notice:

1. Please check hooks, wire rope, wheel bearings and other accessories before use.

2. Do not over weight used.

3. Do not expose the hoist in rain or very humid place.

4. Strictly prohibit people to work under it when it working.

5. Gear and spring should be maintained regularly to prevent brake failure.

6. Please select the appropriate tonnage of block according to the weight of the load.

Specification:

Capacity(T)	1	2	2	3	3	5	10
Lifting height(m)	3/9	3/9	3/9	3/9	3/9	3/9	3/9
Lifting speed(m/min)	6.8	6.8	3.4	5.6	3.4	2.8	2.7
Operating speed(m/min)	10/20	10/20	10/20	10/20	10/20	10/20	10/20
Motor power(kw)	1.5	3	1.5	3	3	3	3
Rotating speed(r/min)	1440	1440	1440	1440	1440	1440	1440

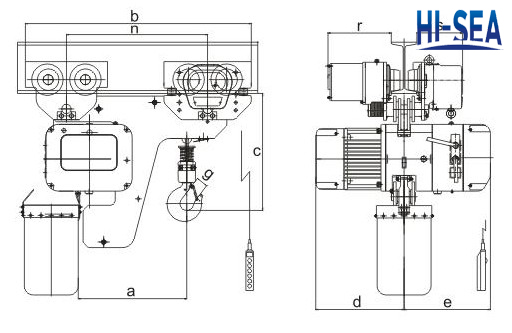

Sketch of the low headroom electric chain hoist
